Exterior Lighting Relay: Locations

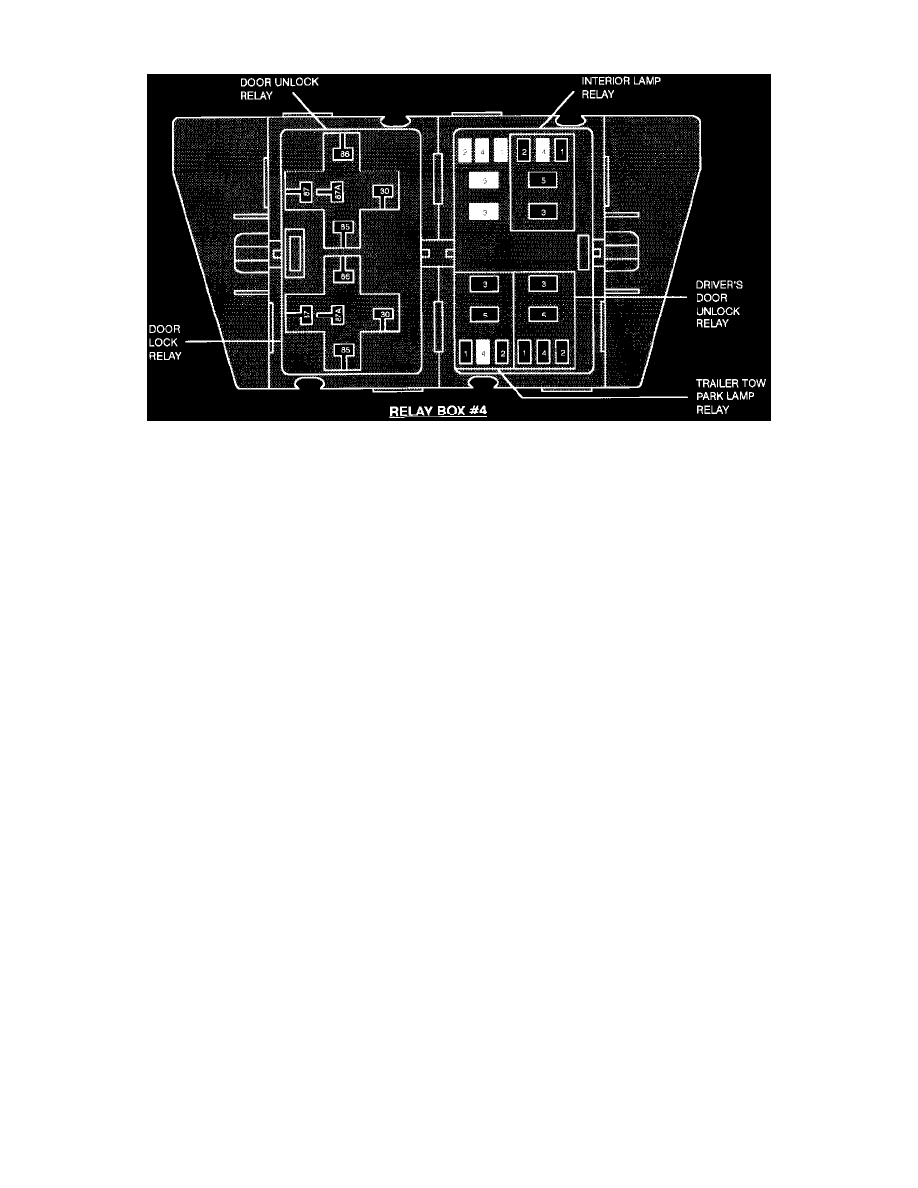

Relay Box

The Interior Lamp Relay is located in the Auxiliary Relay Box #4.
