Explorer 2WD V6-4.0L (2009)
Powertrain Management
Computers and Control Systems

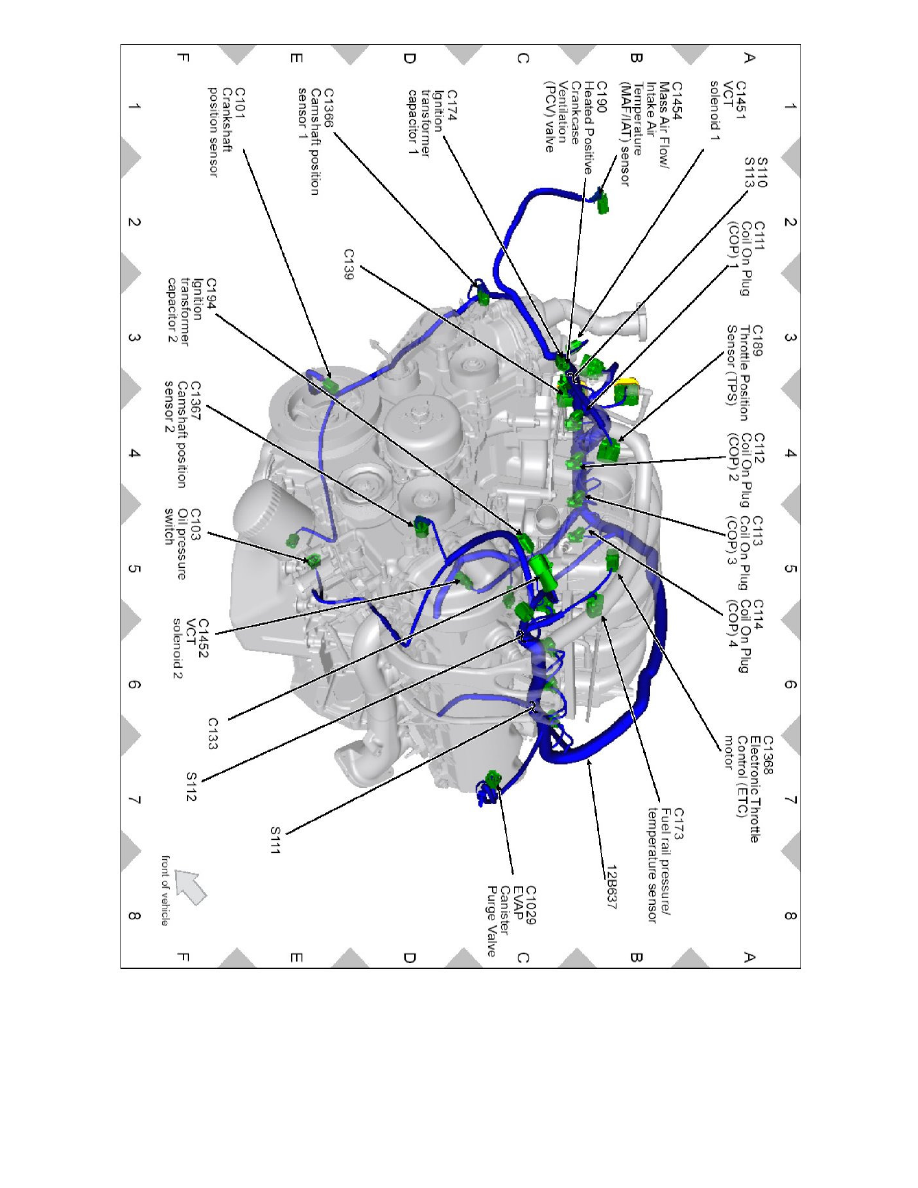

Variable Valve Timing Solenoid
Component Information
Locations
VCT Solenoid 1
Page 1
Powertrain Management
Computers and Control Systems
Variable Valve Timing Solenoid
Component Information
Locations
VCT Solenoid 1
