Explorer 2WD V6-4.0L VIN K (2007)
Alarm System Transmitter: Service and Repair

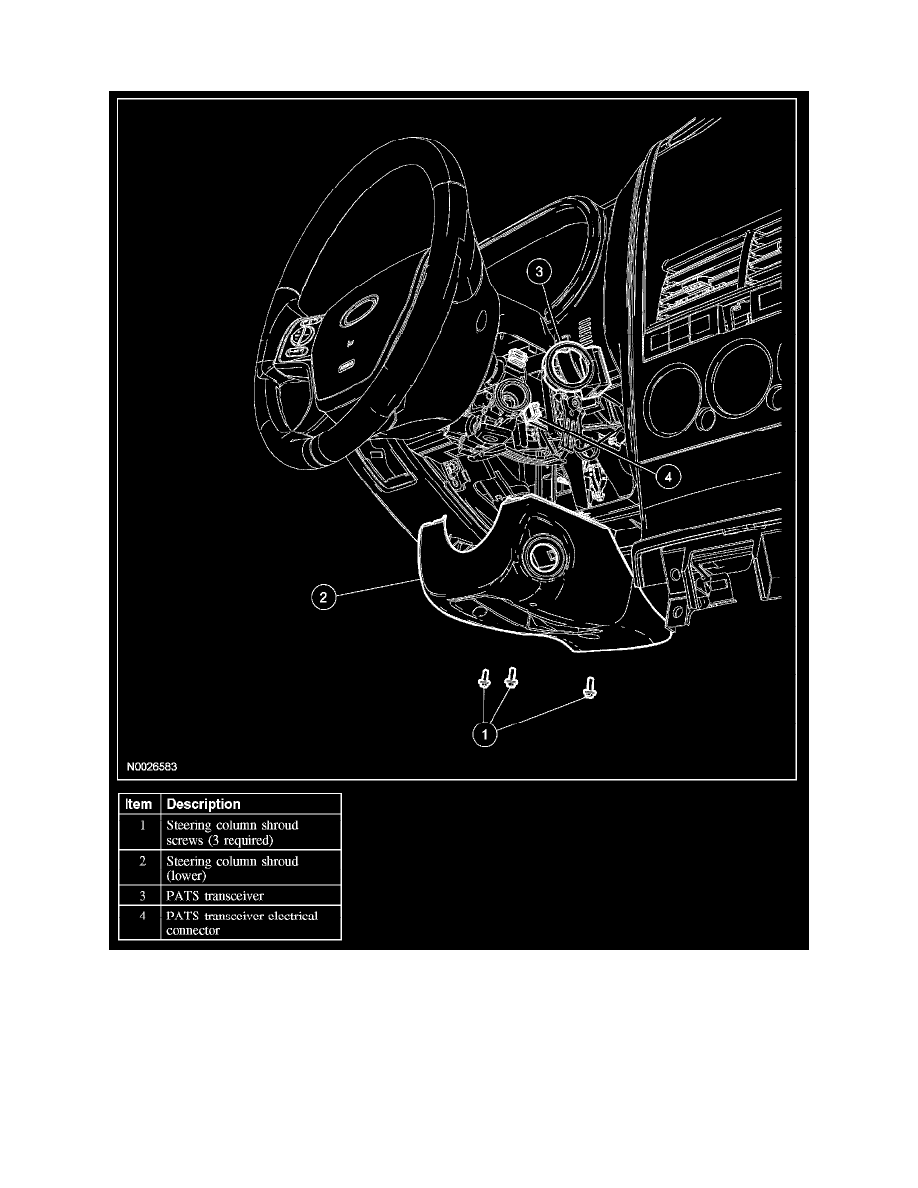

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER
Removal and Installation
1. Remove the steering column cover.
2. Remove the ignition lock cylinder.
3. Remove the 3 screws and the lower steering column shroud.
4. Remove the PATS transceiver.
1
Release the 2 tabs.
2
Disconnect the electrical connector.
5. NOTE: Replacement of the PATS transceiver does not require the PATS keys to be programmed into the instrument cluster again.
