Explorer 2WD V6-4.0L VIN K Flex Fuel (2002)
Console Lamp: Service and Repair

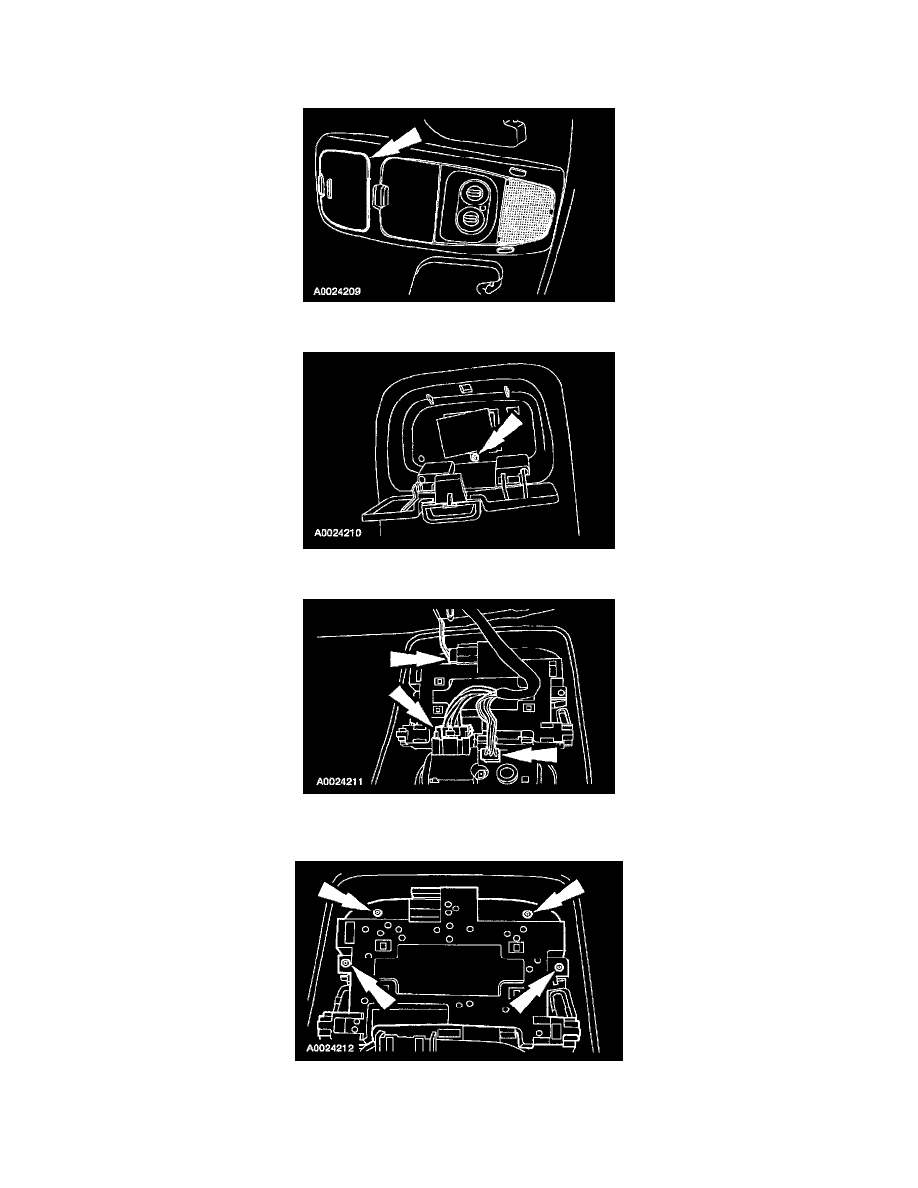

REMOVAL
1. Disconnect the battery.
2. Open the garage door opener storage bin.
3. Remove the screw and lower the overhead console assembly.
4. Remove the overhead console assembly.
^
Disconnect the electrical connectors.
5. Remove the lamp assembly.
^
Remove the screws.
INSTALLATION
