Explorer 2WD V8-4.6L VIN 8 (2006)

  • Body and Frame
  • Fender
  • Front Fender
  • Front Fender Liner
  • System Information
  • Service and Repair

Page 1
background image

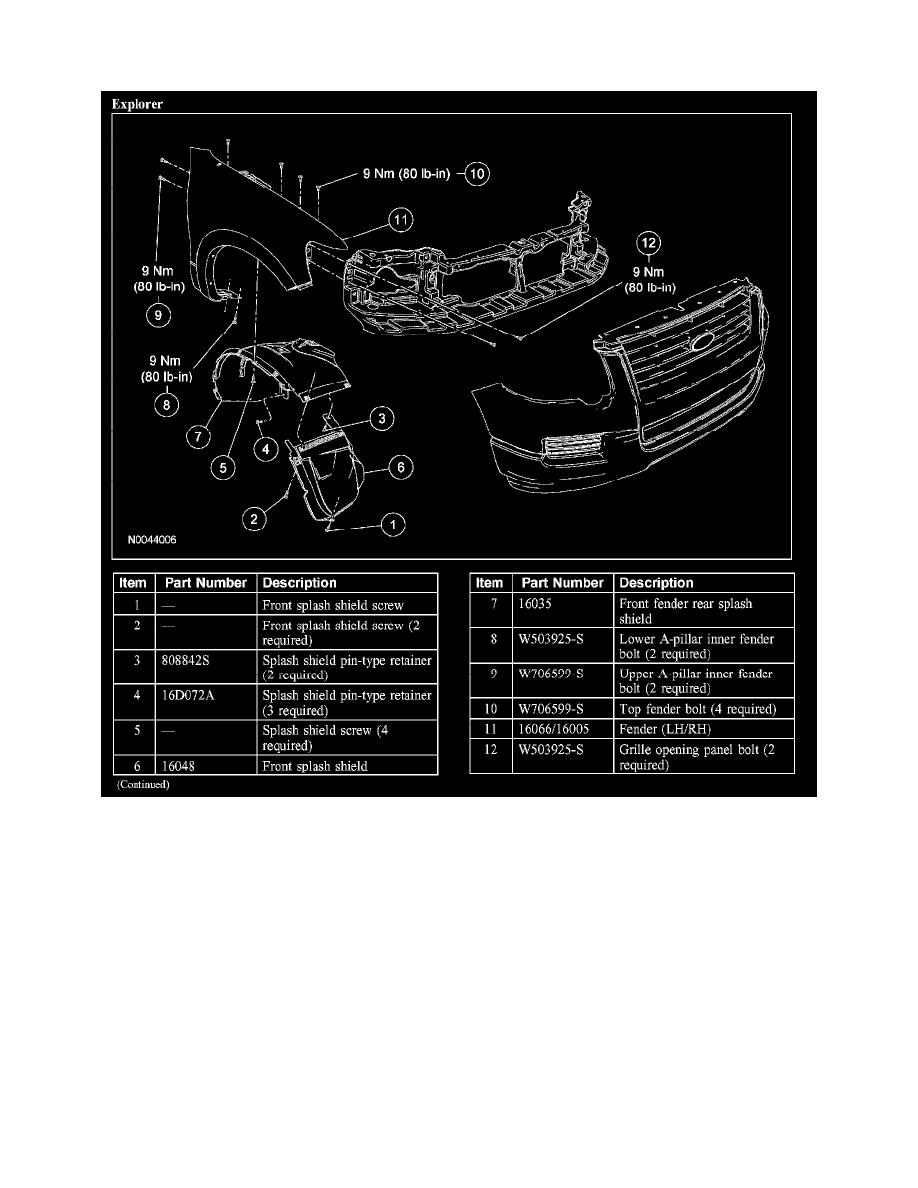

Front Fender Liner: Service and Repair

FENDER SPLASH SHIELD

Explorer

  • Body and Frame
  • Fender
  • Front Fender
  • Front Fender Liner
  • System Information
  • Service and Repair
