Explorer 2WD V8-4.6L VIN 8 (2006)
Fan Shroud: Service and Repair
Cooling Fan Shroud

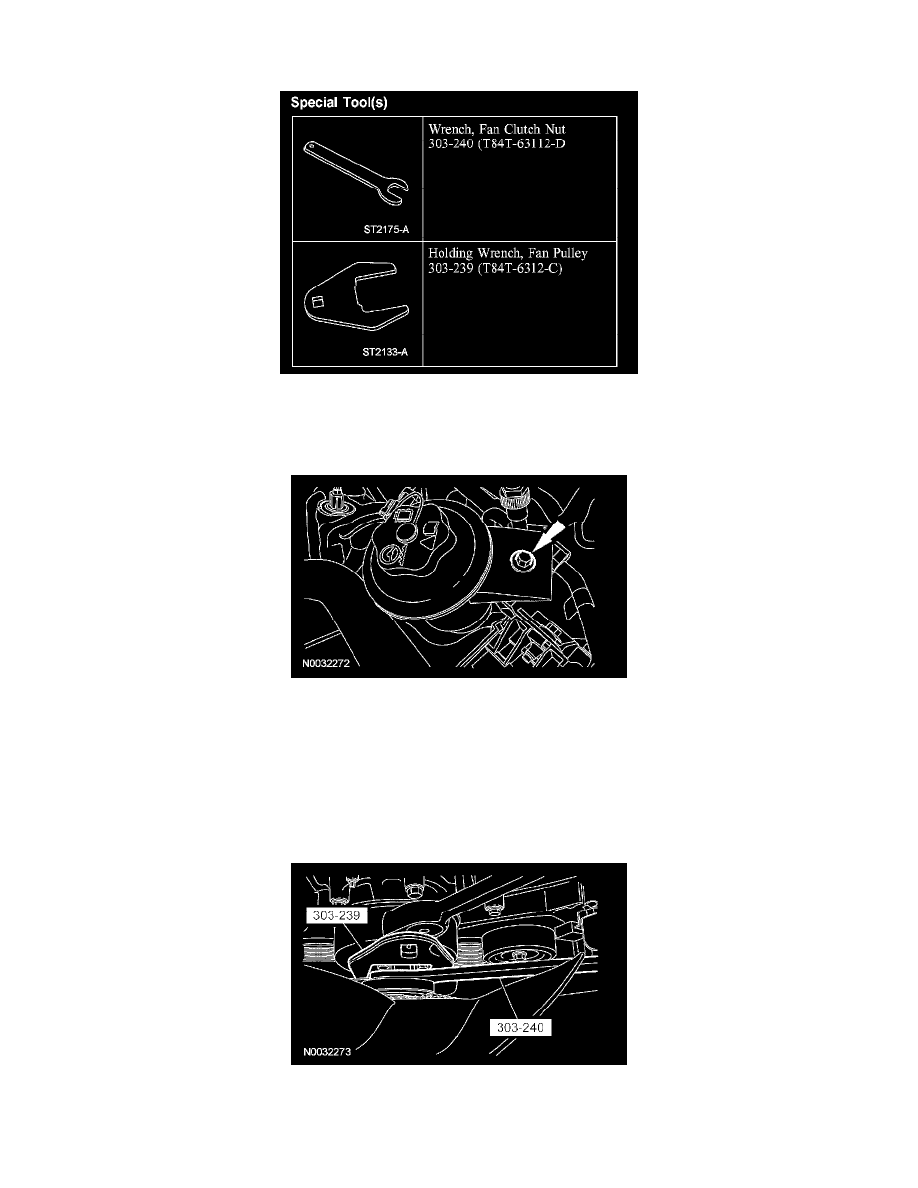

Special Tool(s)
Removal and Installation
1. Remove the coolant expansion tank.
2. Remove the bolt and position the power steering fluid reservoir aside.
^
To install, tighten to 10 Nm (89 inch lbs.).
3. Remove the bolts, then unclip the upper fan shroud from the lower fan shroud and remove the upper fan shroud.
^
To install, tighten to 7 Nm (62 inch lbs.).
4. Disconnect the fan clutch electrical connector.
5. Remove the fan clutch wiring harness bracket bolt.
^
To install, tighten to 10 Nm (89 inch lbs.).
6. Using the special tools, remove the cooling fan.
^
To install, tighten to 55 Nm (41 ft. lbs.).
7. Remove the bolts and the lower fan shroud.
