Explorer 4WD V6-245 4.0L VIN X SFI (1997)
Suspension Mode Switch: Service and Repair

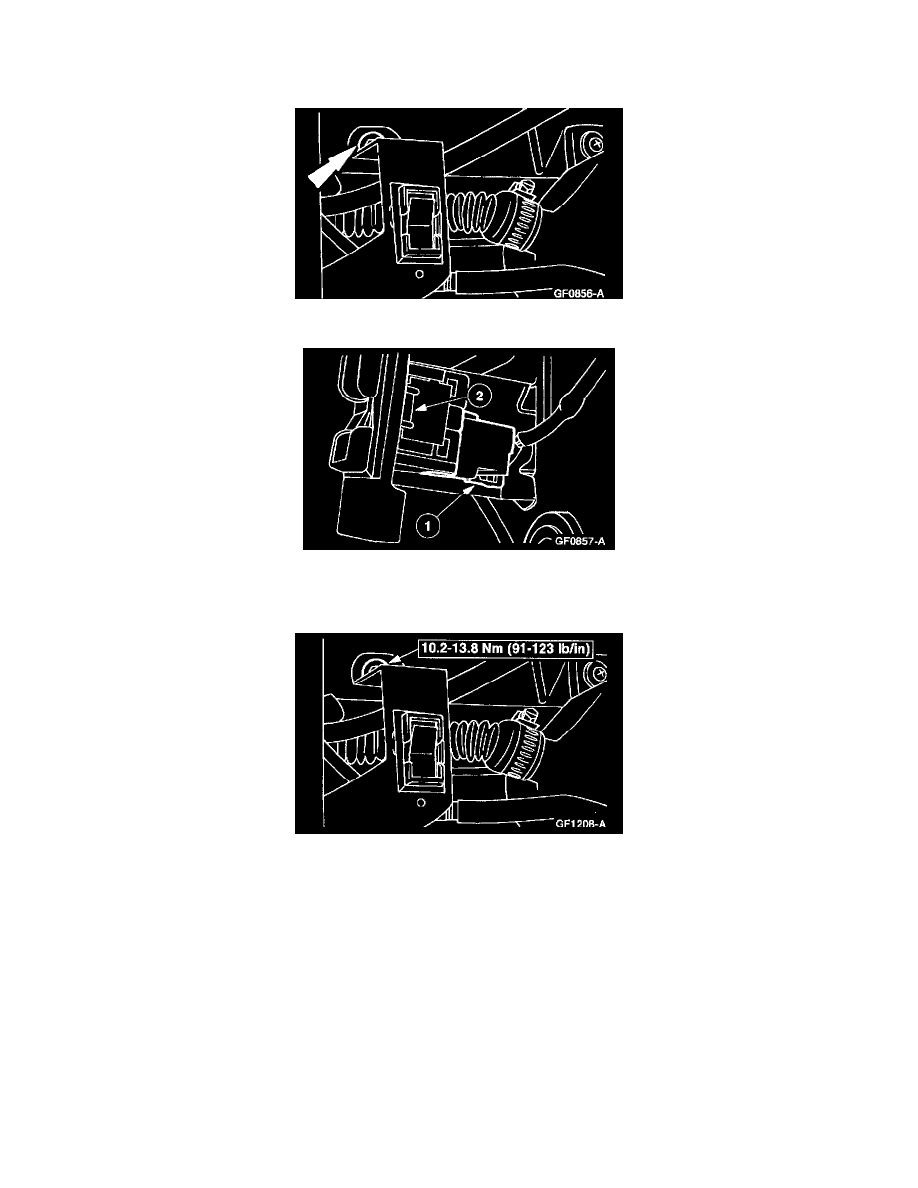

REMOVAL
1. Remove the LH quarter trim panel.
2. Remove the retaining screw and air suspension switch bracket.
3. Remove the air suspension switch.
(1) Disconnect the electrical connector.
(2) Press the retaining clips and remove the air suspension switch from the bracket.
INSTALLATION
1. To install, reverse the removal procedure.
