Sunroof / Moonroof Motor: Service and Repair

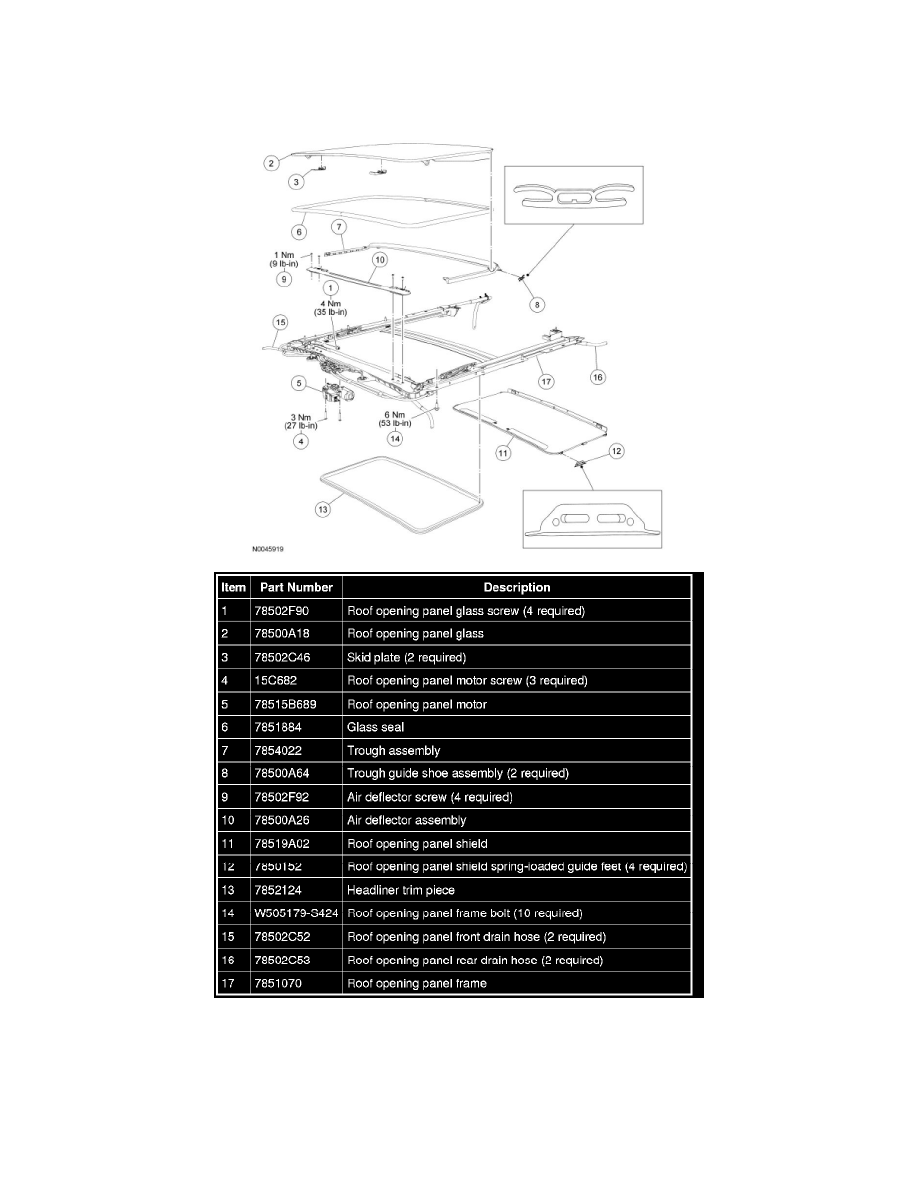

Roof Opening Panel - Exploded View

Roof Opening Panel - Exploded View

1. For additional information, refer to the procedures.
