Explorer 4WD V8-4.6L SOHC VIN W (2004)
Ignition Switch Lock Cylinder: Service and Repair
IGNITION LOCK CYLINDER
REMOVAL

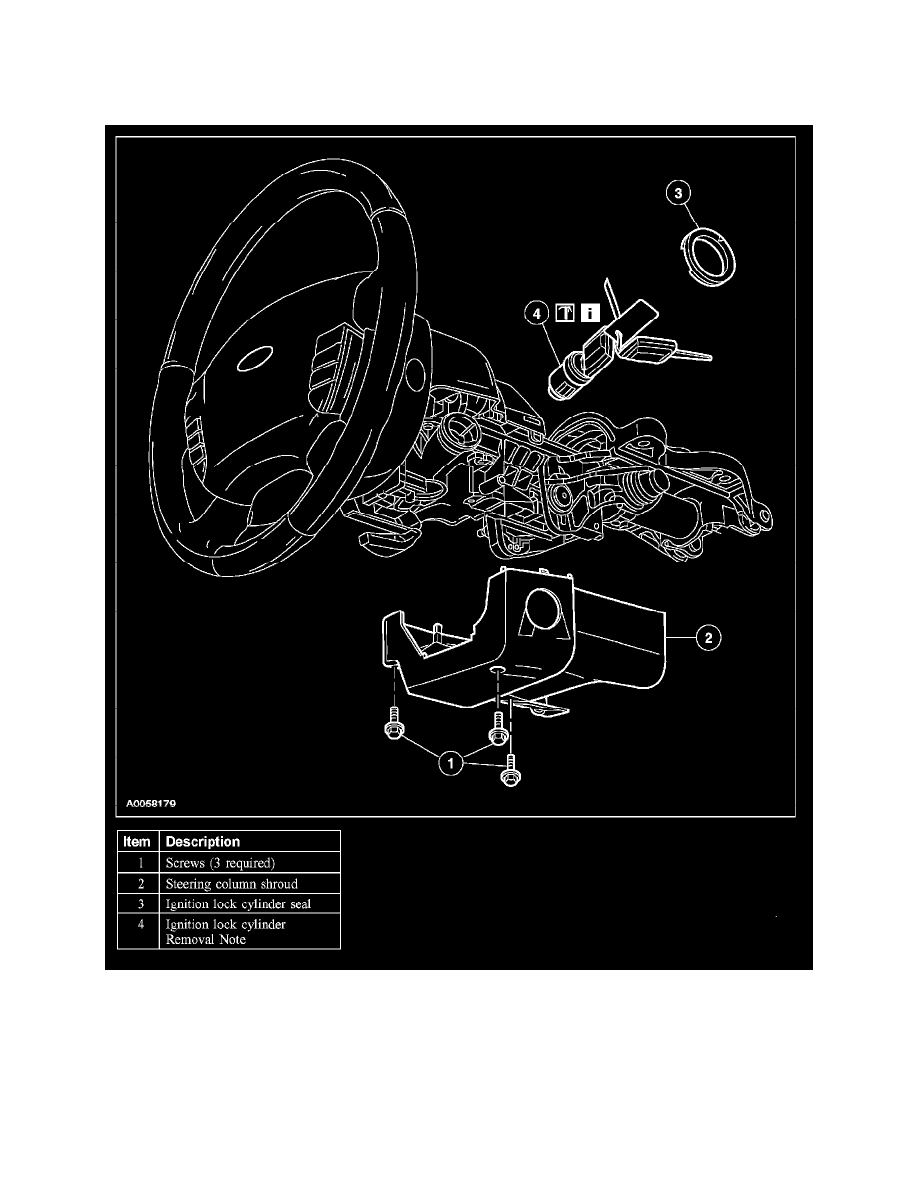

1. Remove the parts in the order indicated in the illustration and table.
Item 4: Ignition Lock Cylinder Removal Note
1. With the ignition switch in the ON position, press the locking pin with a suitable tool and remove the cylinder.
INSTALLATION
1. To install, reverse the removal procedure.
