Explorer 4WD V8-4.6L SOHC VIN W (2004)

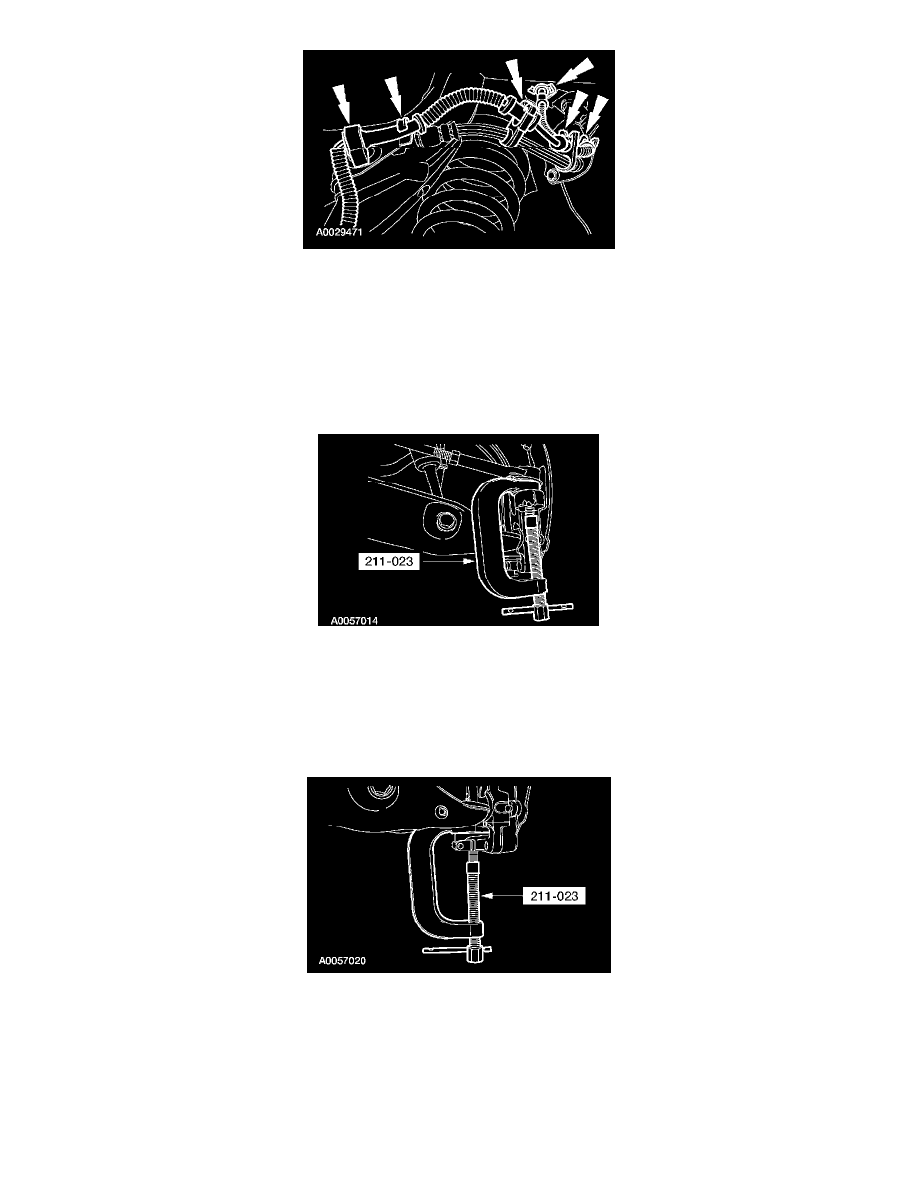

1. Detach the wheel speed sensor harness from the brake hose.
Item 5: Brake Caliper, Pads and Anchor Plate Removal Note
1. CAUTION: Do not allow the brake caliper to hang from the hose or damage to the hose can occur.
Position the caliper, pads and anchor plate aside.
Item 10: Tie-Rod End-to-Wheel Knuckle Nut Removal Note
1. CAUTION: Do not use a hammer to separate the tie-rod from the wheel knuckle or damage to the wheel knuckle can result.
CAUTION: Do not damage the tie-rod boot while installing the special tool.
Using the special tool, separate the tie-rod from the wheel knuckle.
Item 11: Lower Ball Joint-to-Wheel knuckle Nut Removal Note
1. CAUTION: Do not use a hammer to separate the ball joint from the wheel knuckle or damage to the wheel knuckle can result.
CAUTION: Do not damage the ball joint boot while installing the special tool.
Using the special tool, separate the lower ball joint from the wheel knuckle.
Item 12: Upper Ball Joint-to-Wheel Knuckle Nut Removal Note
