Explorer 4WD V8-4.6L SOHC VIN W (2004)
Wheel Bearing: Service and Repair

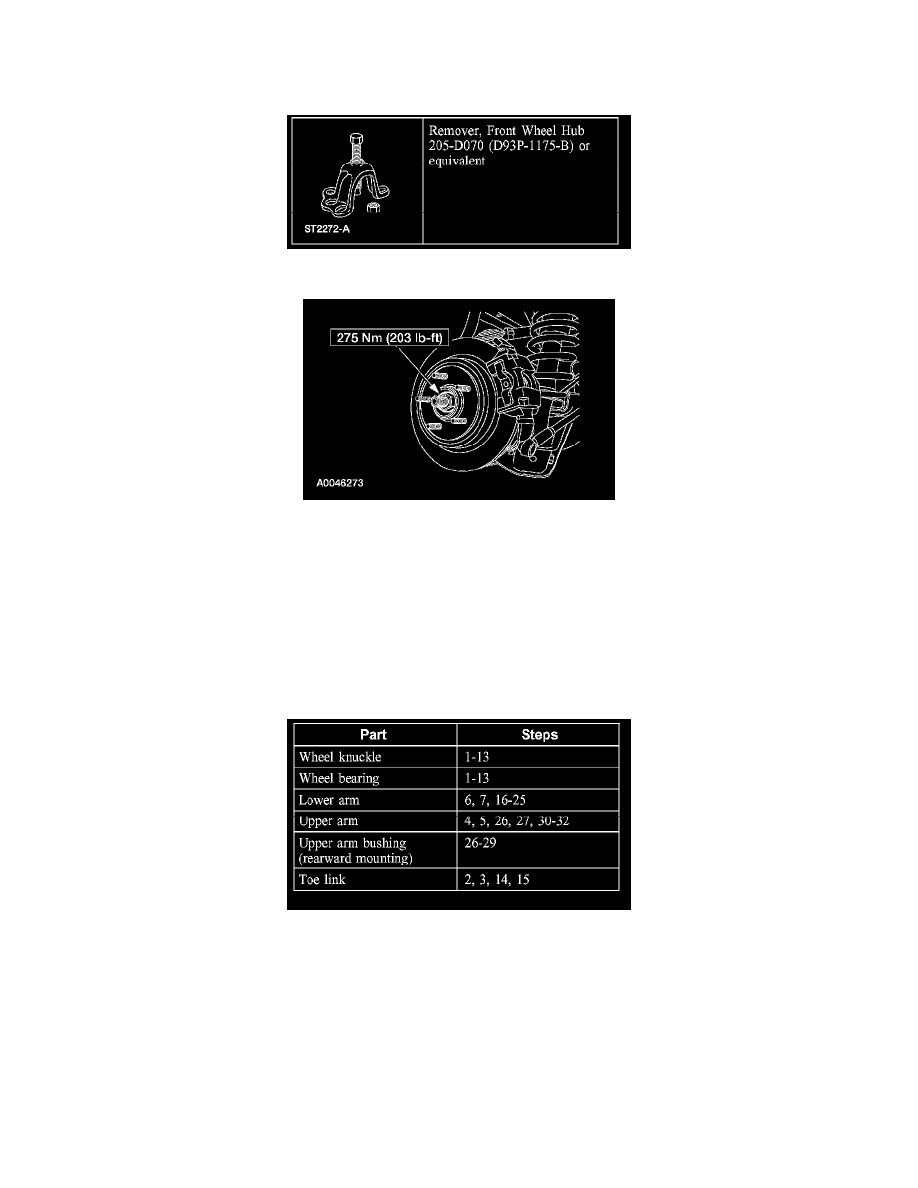

Rear
Wheel Bearing, Hub, Knuckle, Upper Arm and Lower Arm-Rear
Special Tool(s)
1. CAUTION: Do not loosen the axle wheel hub retainer until the wheel and tire are removed from the vehicle. Wheel bearing damage will occur if
the wheel bearing is unloaded with the weight of the vehicle applied.
NOTE: Have an assistant press the brake pedal to keep the axle from turning.
NOTE: Only carry out this step if servicing the wheel knuckle and wheel bearing.
Remove the nut and washer.
-
Discard the nut.
2. Remove the parking brake shoes.
3. Remove the parts in the order indicated in the illustrations and tables.
