Explorer 4WD V8-4.6L VIN W (2002)
Power Steering Pump: Service and Repair
Power Steering Pump
Power Steering Pump

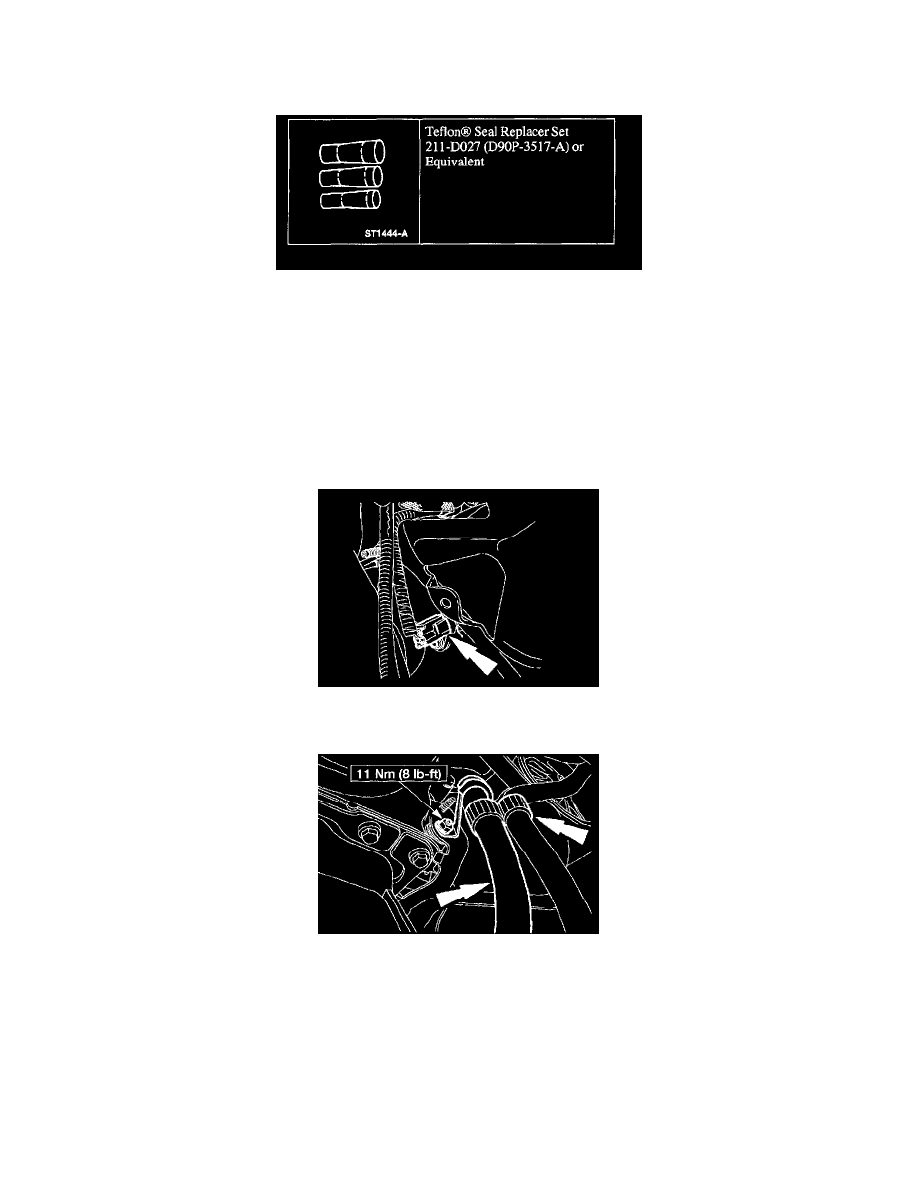

Special Tools
Special Tool(s)
Removal and Installation
CAUTION: While servicing the power steering system, make sure to plug all open hoses, line fittings, and fluid ports to prevent the entry of
contaminants or premature failure of the power steering components can result.
1. Remove the fluid reservoir.
2. Remove the pulley.
3. Disconnect the electrical connector.
4. Remove the left front wheel and tire assembly.
5. Remove the nut and detach the pressure line from the return line.
