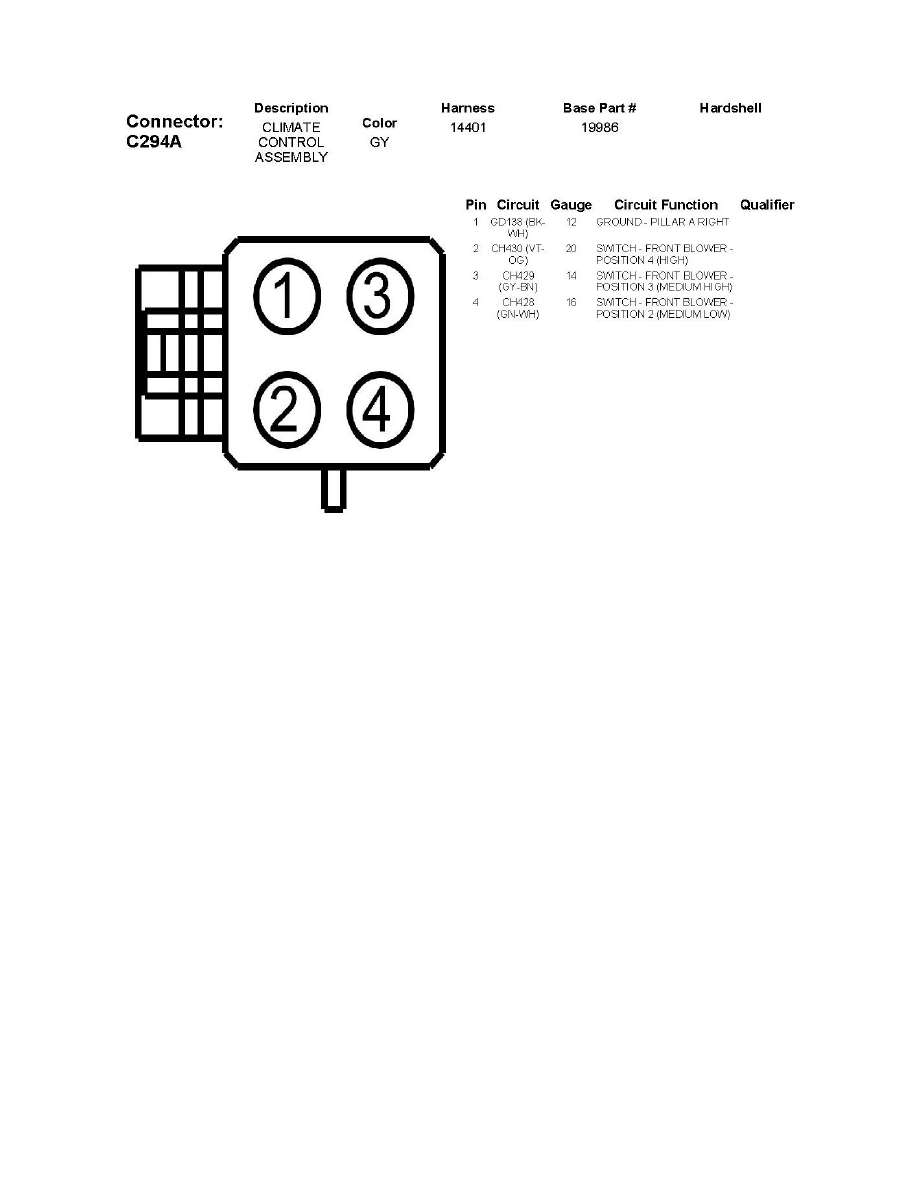

Control Assembly: Diagrams
Climate Control Assembly

Heating and Air Conditioning
Control Assembly, HVAC
Component Information
Diagrams
Climate Control Assembly
