Explorer AWD V8-4.6L (2010)

Page 1
background image

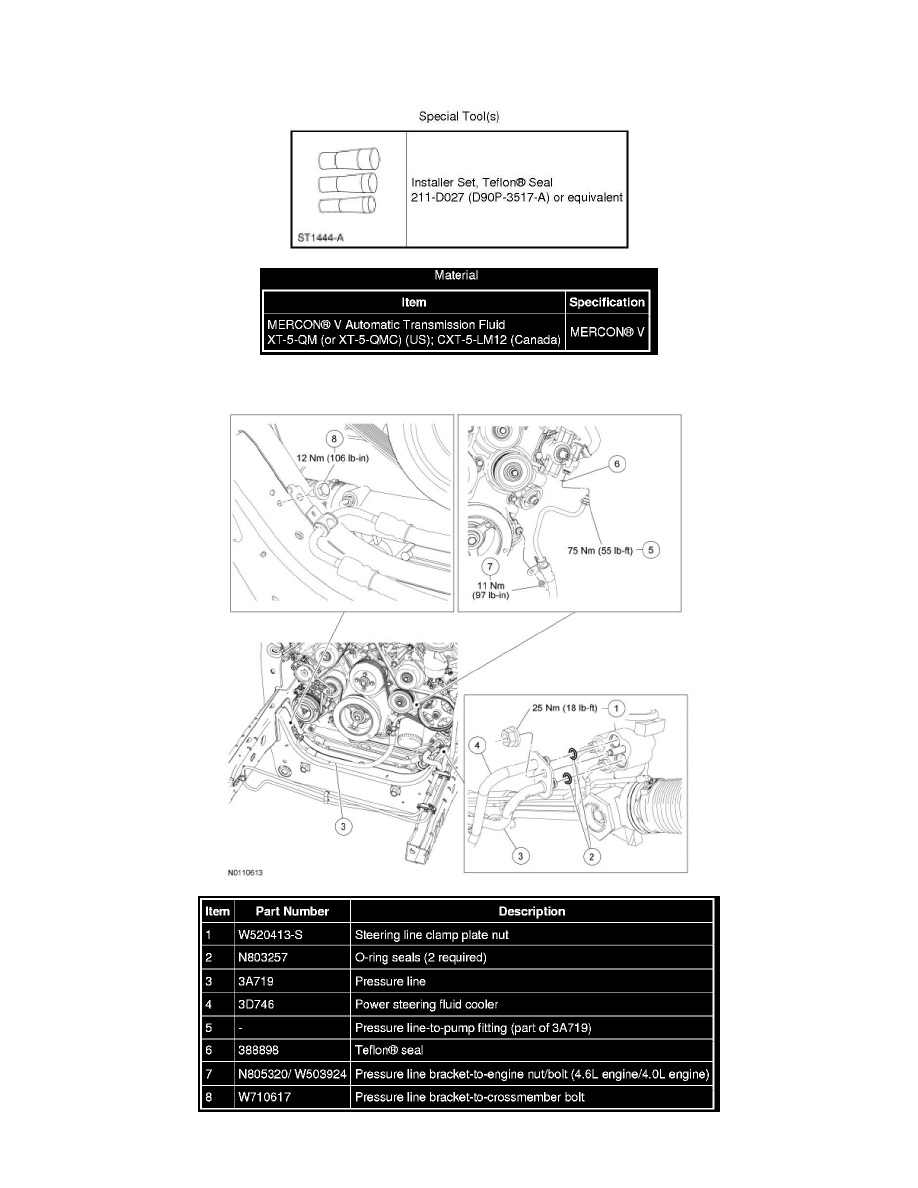

Power Steering Line/Hose: Service and Repair

Power Steering Pump to Steering Gear Pressure Line

NOTE:  4.6L engine shown, 4.0L engine similar.

Removal
