Air Duct: Service and Repair
Floor Duct

REMOVAL

1. Remove the second row climate control assembly.

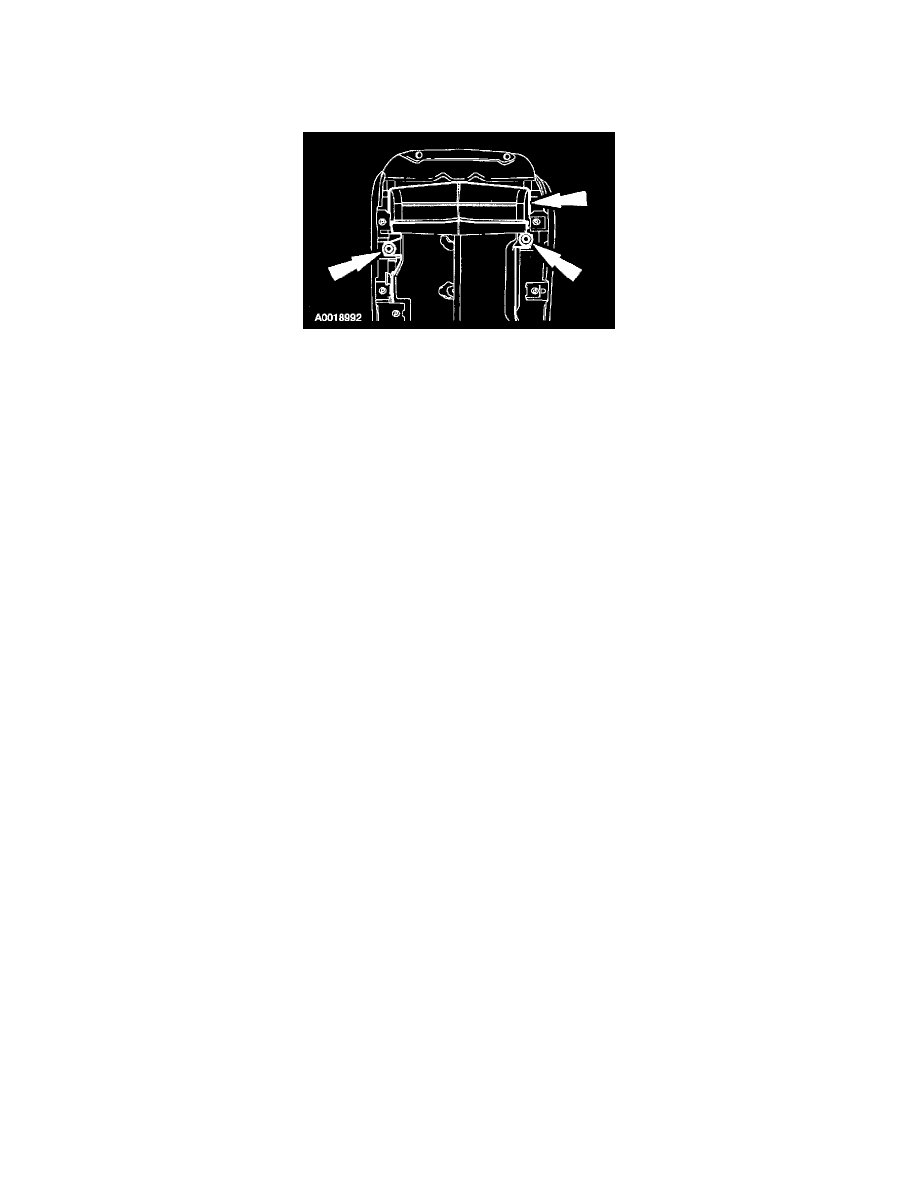

2. Remove the screws and the rear floor duct.

INSTALLATION

1. To install, reverse the removal procedure.
