Explorer Sport Trac 2WD V6-4.0L VIN E (2002)
Drive Belt: Service and Repair
Accessory Drive Belt
Removal and Installation
1. Remove the air cleaner outlet tube.
2. Remove the accessory drive belt.

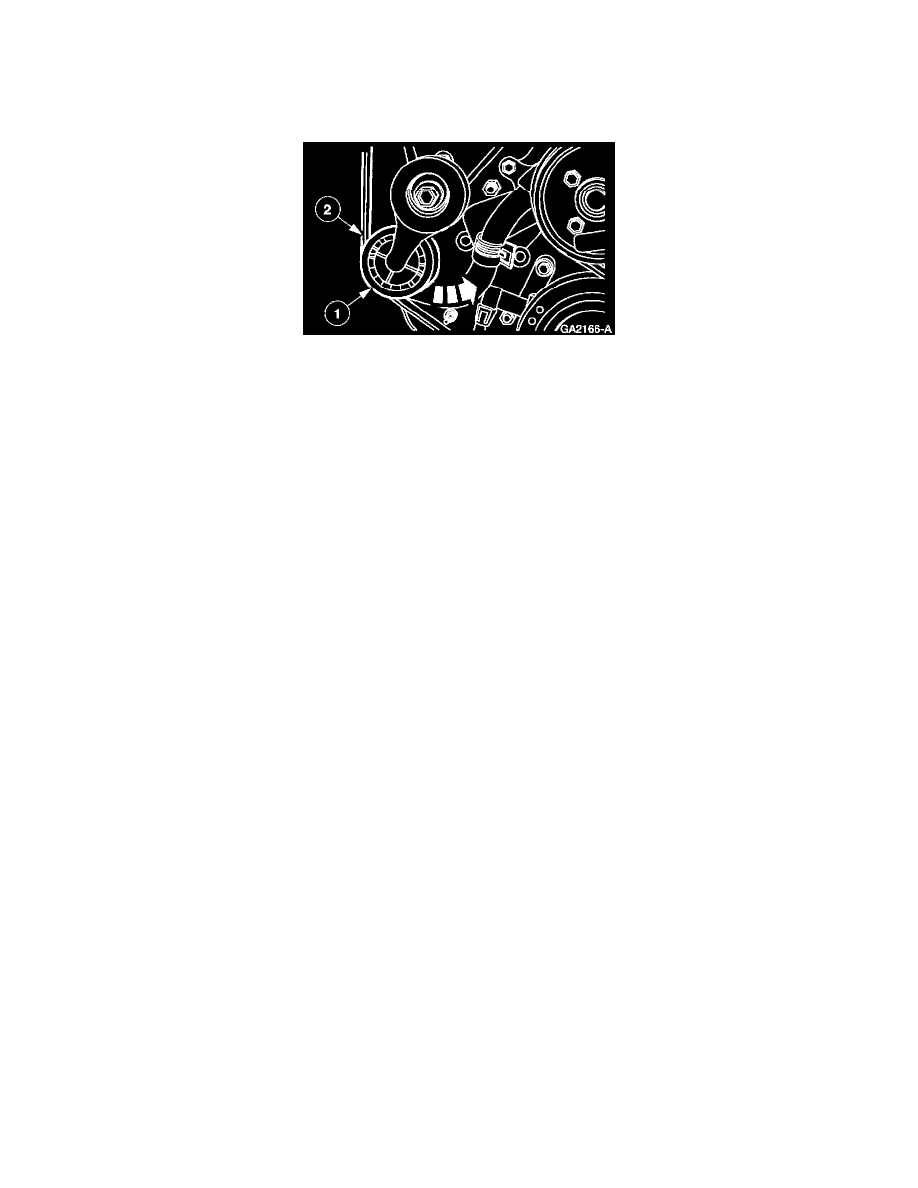

1
Rotate the accessory drive belt tensioner counterclockwise.
2
Remove the belt.
3. NOTE: Refer to Component locations for correct drive belt routing.
To install, reverse the removal procedure.
