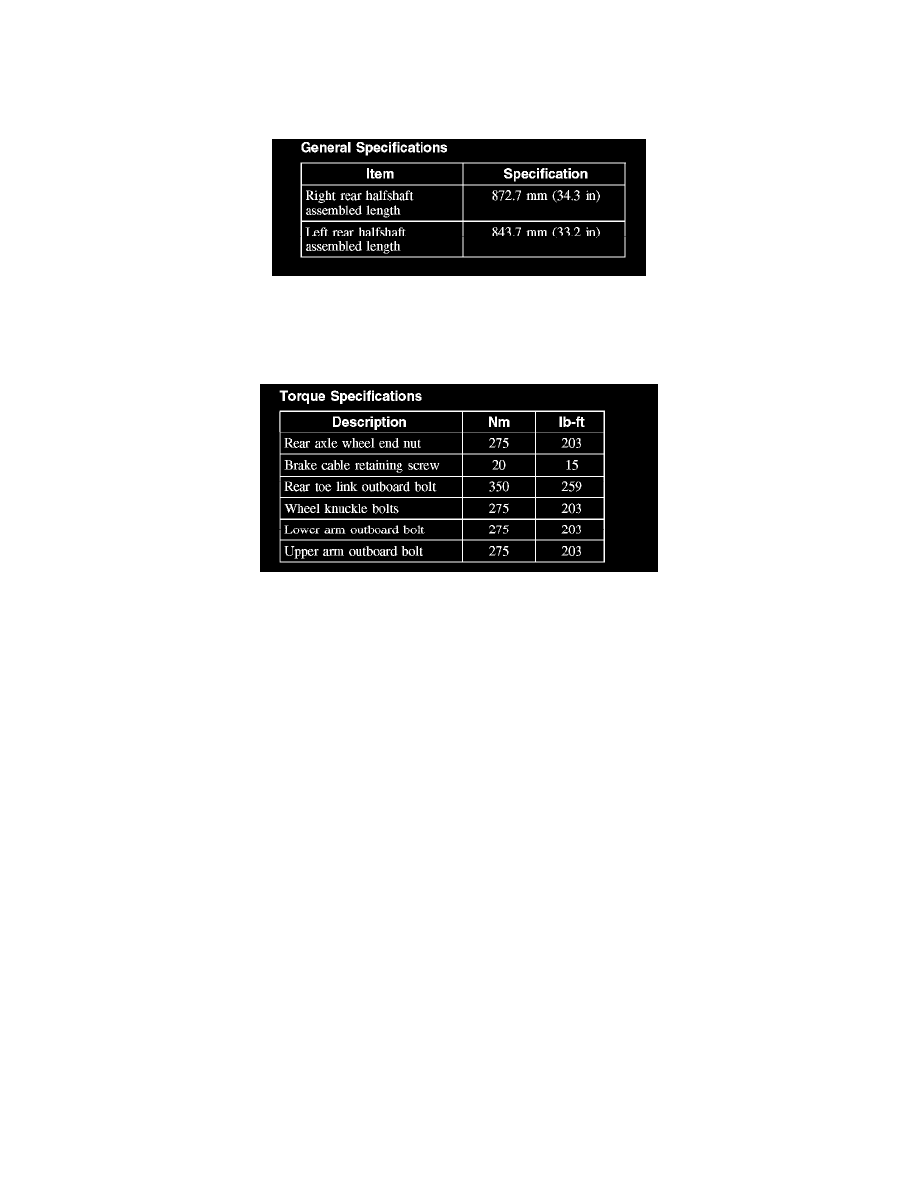

Axle Shaft Assembly: Mechanical Specifications

General Specifications

General Specifications

General Specifications

Torque Specifications

Torque Specifications

Torque Specifications
