F 150 2WD V8-4.6L VIN 8 (2009)

Page 1
background image

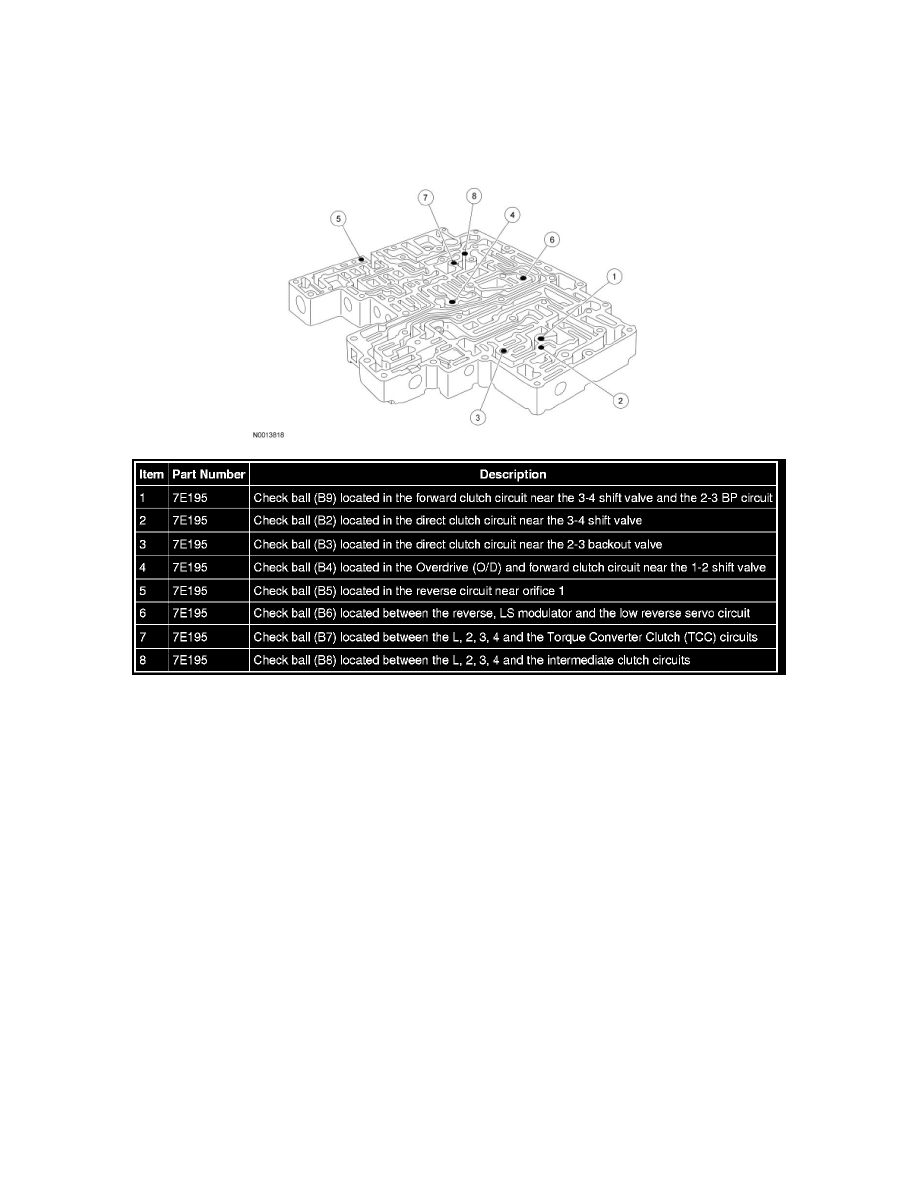

Valve Body: Locations
4R70E/4R75E - Check Ball Locations

Main Control Valve Body

NOTE: Note the location of the 8 coasting booster valve shuttle balls for assembly.
