F 150 4WD V8-4.6L VIN 8 (2010)

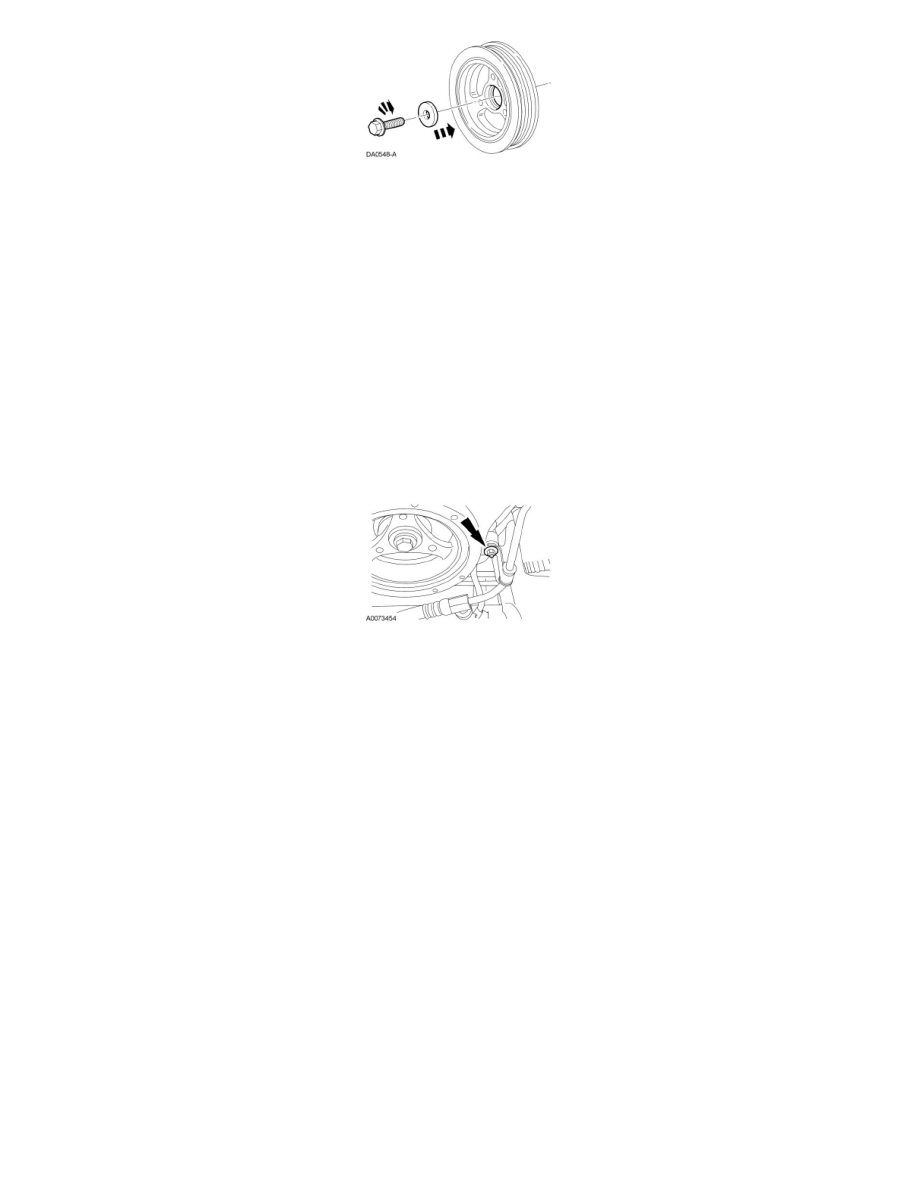

13. Install the accessory drive belt tensioner and the 3 bolts.
-
Tighten to 25 Nm (18 lb-ft).
14. Install the 3 accessory drive idler pulleys and the 3 bolts.
-
Tighten to 25 Nm (18 lb-ft).
15. Position the coolant pump pulley and install the 4 bolts finger-tight.
16. If equipped, install the skid plate and the 4 bolts.
-
Tighten to 25 Nm (18 lb-ft).
17. Position the power steering pump and install the 2 bolts and the stud bolt.
-
Tighten to 25 Nm (18 lb-ft).
18. Attach the engine wiring harness to the power steering pump stud bolt.
19. Position the PSP hose support bracket and install the nut.
-
Tighten to 40 Nm (30 lb-ft).
20. Connect the RH CMP sensor electrical connector.
21. Install the RH radio ignition interference capacitor and the nut.
-
Tighten to 25 Nm (18 lb-ft).
22. Connect the LH CMP sensor electrical connector.
23. Install the LH radio ignition interference capacitor and the nut.
-
Tighten to 25 Nm (18 lb-ft).
24. Install the accessory drive belt. For additional information, refer to Drive Belts, Mounts, Brackets and Accessories.
25. Tighten the 4 coolant pump pulley bolts.
-
Tighten to 25 Nm (18 lb-ft).
26. Install the LH valve cover. For additional information, refer to Valve Cover - LH See: Cylinder Head Assembly/Valve Cover/Service and
Repair/Valve Cover - LH.
27. Install the RH valve cover. For additional information, refer to Valve Cover - RH See: Cylinder Head Assembly/Valve Cover/Service and
Repair/Valve Cover - RH.
28. Fill the crankcase with clean engine oil.
29. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
