1984 Ford F150 4WD Wiper and Washer Systems Relay Diagrams

Page 1
background image

Windshield Washer Relay: Electrical Diagrams

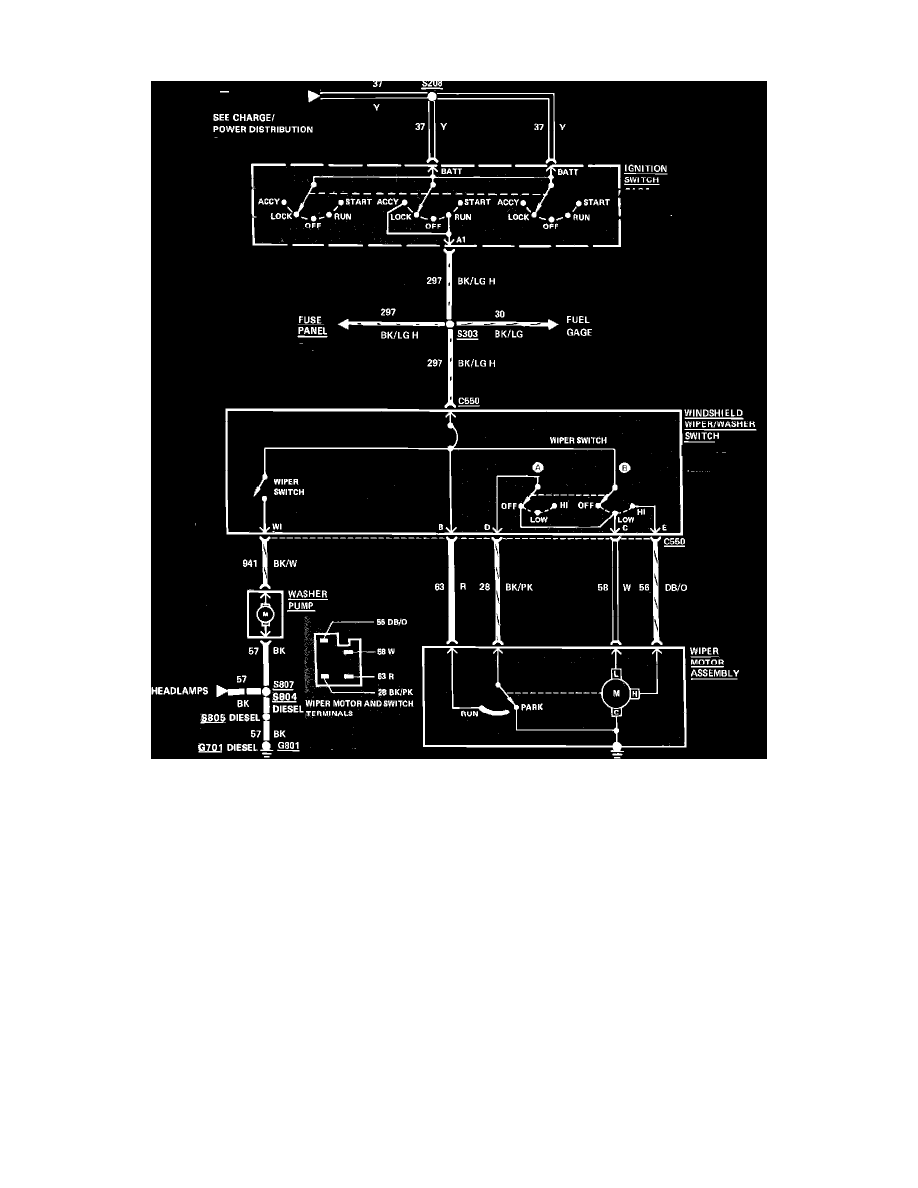

Fig. 133  Windshield wiper & washer wiring circuit. 1984 Bronco & F100-350 less intermittent wipers
