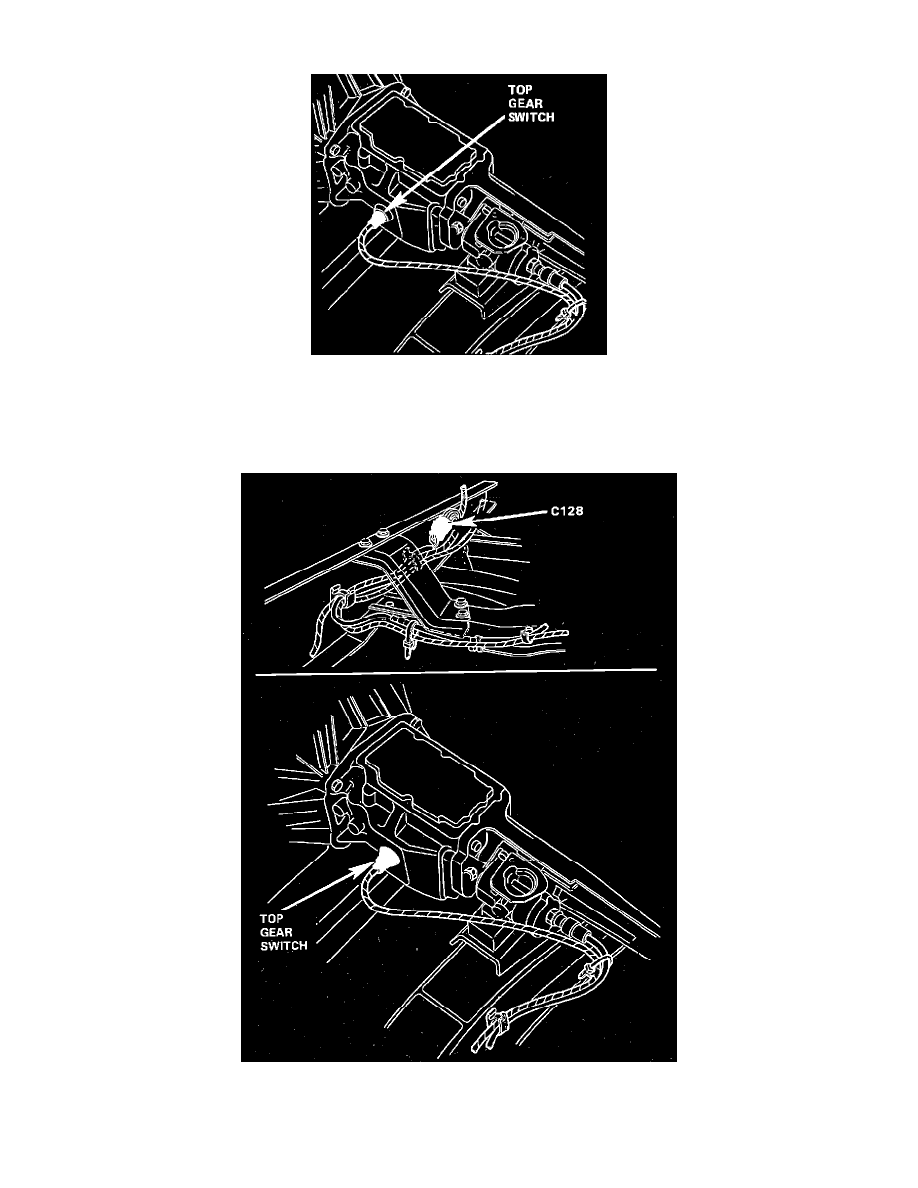

Gear Sensor/Switch: Locations

LH Side Of Manual Transmission.

 Mounted To Transmission

Applicable to:  1983

LH Side Of Transmission.

 Mounted To Transmission
