F 150 4WD Pickup V8-4.6L SOHC VIN 6 (1997)

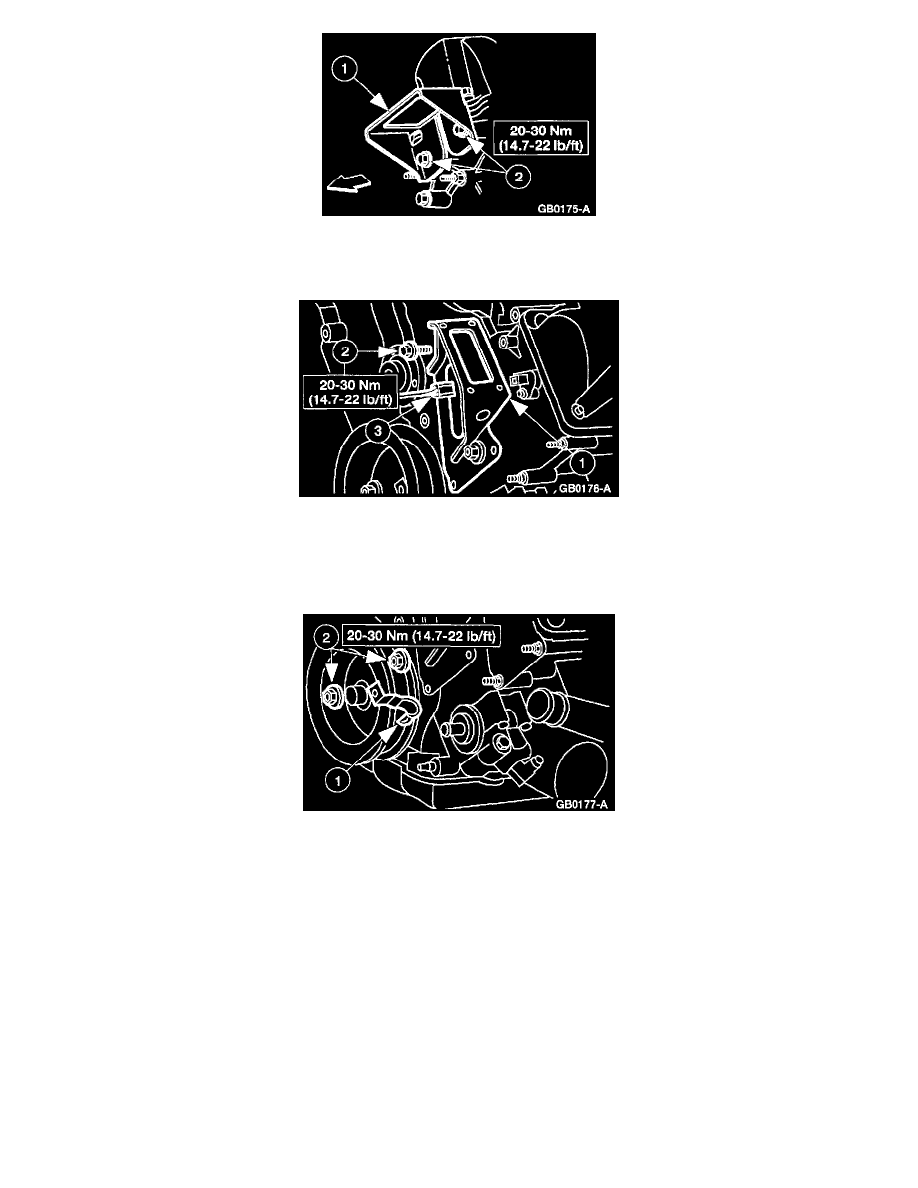

1. Install the RH ignition coil bracket.
1
Position the RH ignition coil bracket.
2
Install the RH ignition coil bracket bolts.
2. Install the LH ignition coil bracket.
1
Position the LH ignition coil bracket.
2
Install the bolt.
3
Connect the CMP sensor electrical connector.
3. Install the power steering hose bracket.
1
Position the power steering hose bracket.
2
Install the nuts.
4. Install the ignition coils.
