F 150 Heritage 4WD Pickup V8-5.4L SOHC VIN Z Bi-fuel (2004)
Wheel Cylinder: Service and Repair
Disassembly and Assembly
Wheel Cylinder
Disassembly
1. NOTE: Removal is not necessary to disassemble, inspect, hone or overhaul the rear wheel cylinder.

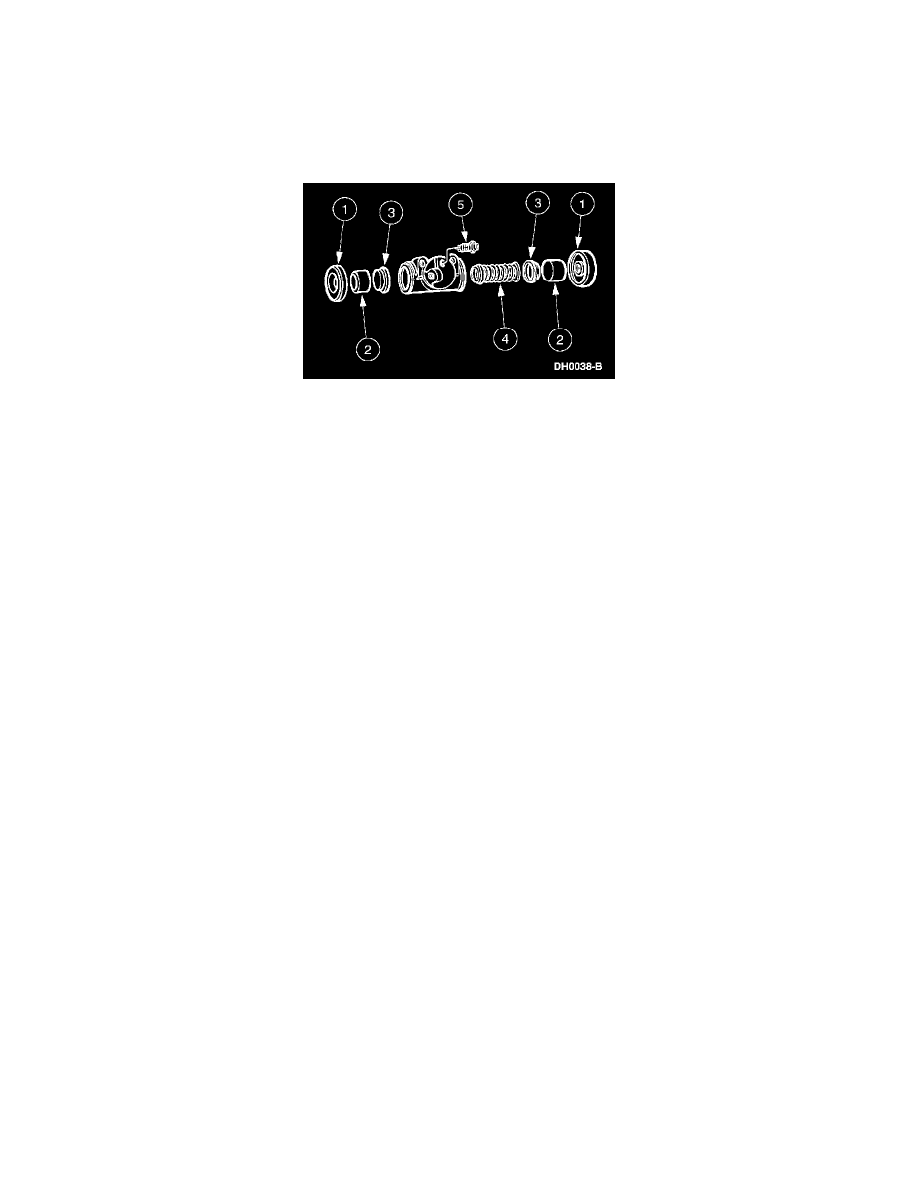

Disassemble the rear wheel cylinder.
1
Remove the rubber boots.
2
Remove the rear wheel cylinder pistons.
3
Remove the cups.
4
Remove the expander.
5
Remove the wheel cylinder bleeder screw from the rear wheel cylinder.
Assembly
1. NOTE: Coat all the rear wheel cylinder parts with Ford High Performance DOT 3 Motor Vehicle Brake Fluid C6AZ-19542-AB or equivalent
DOT 3 fluid meeting Ford specification ESA-M6C25-A.
Follow the disassembly procedure in reverse order.
