F 150 Heritage 4WD Pickup V8-5.4L SOHC VIN Z Bi-fuel (2004)
Clutch Disc: Service and Repair
Disc and Pressure Plate

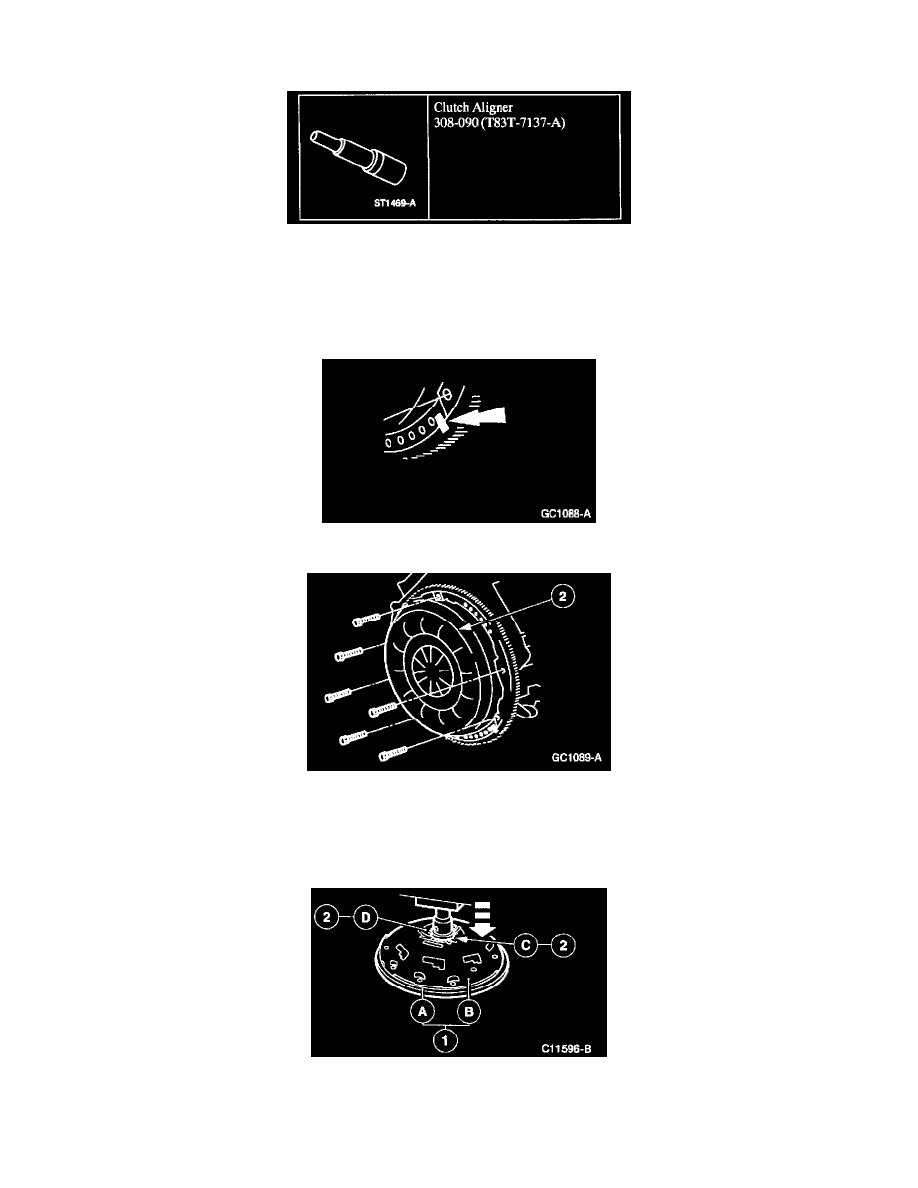

Special Tools
Special Tool(s)
Removal
1. Remove the transmission.
2. If the parts are to be reused, mark the clutch pressure plate and the flywheel.
3. Remove the clutch pressure and clothe disc.
1
Remove the bolts.
2
Remove the clutch pressure plate and the clutch disc.
Installation
1. NOTE: The self-adjusting clutch pressure plate should always be adjusted before installation.
Compress the clutch diaphragm fingers.
1
Place (A) the flywheel and (B) the pressure plate in a press.
