Page 6
background image

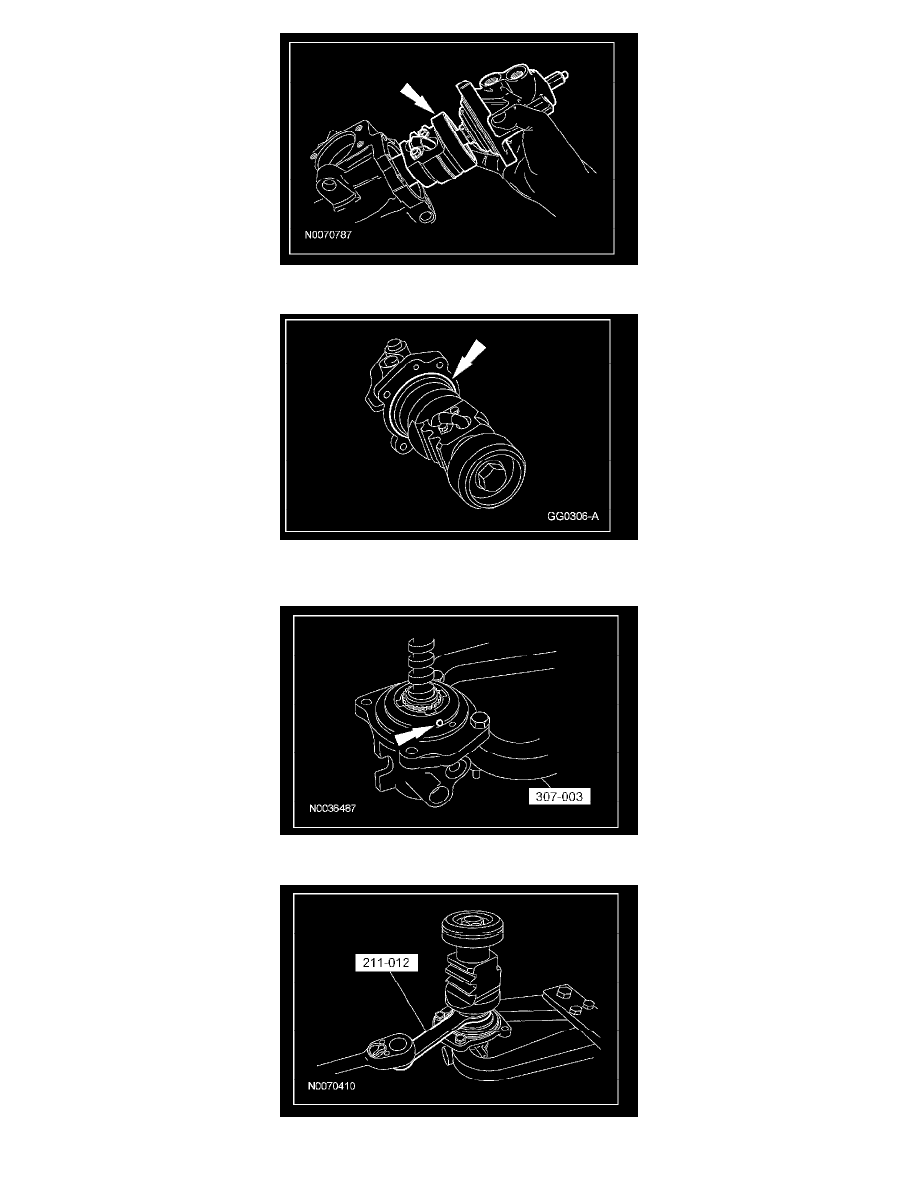

11. Remove and discard the valve housing seal.

12. Place the valve housing in the special tool and remove the worm thrust bearing retainer ring setscrew.

^

Discard the setscrew.

13. Using the special tool, remove the worm thrust bearing retainer ring.

14. Remove the input shaft and control from the valve housing.
