Page 44
background image

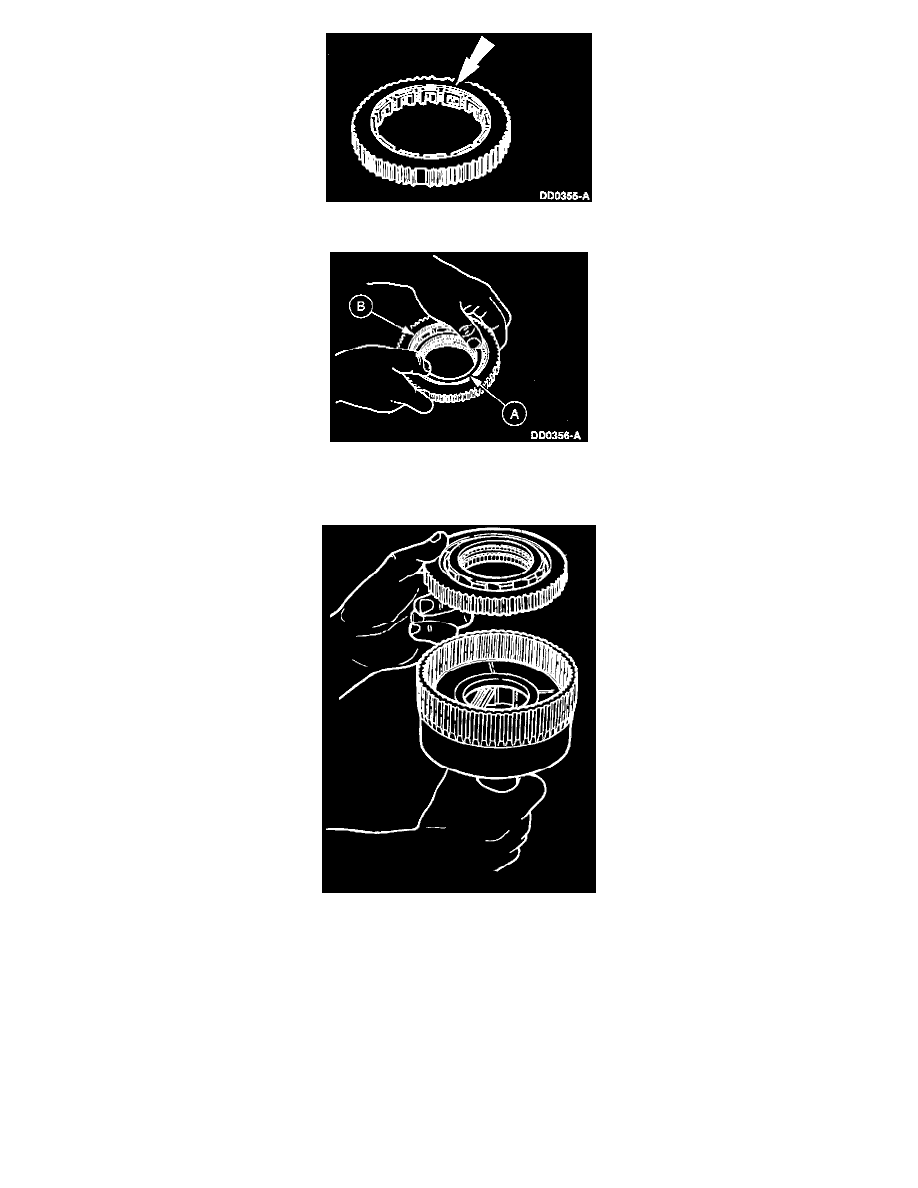

6. Install the retaining ring and the unitized plastic cage.

7. Install the inner race, with the (A) undercut toward the (B) small retaining ring.

NOTE:  When installed, the inner race must rotate counterclockwise.

8. Install the overdrive one-way clutch.

NOTE:  The small retaining ring must face upward.
