F 350 4WD Super Duty V10-6.8L VIN Z Bi-Fuel (2001)
Housing Assembly HVAC: Service and Repair
Evaporator Core Housing

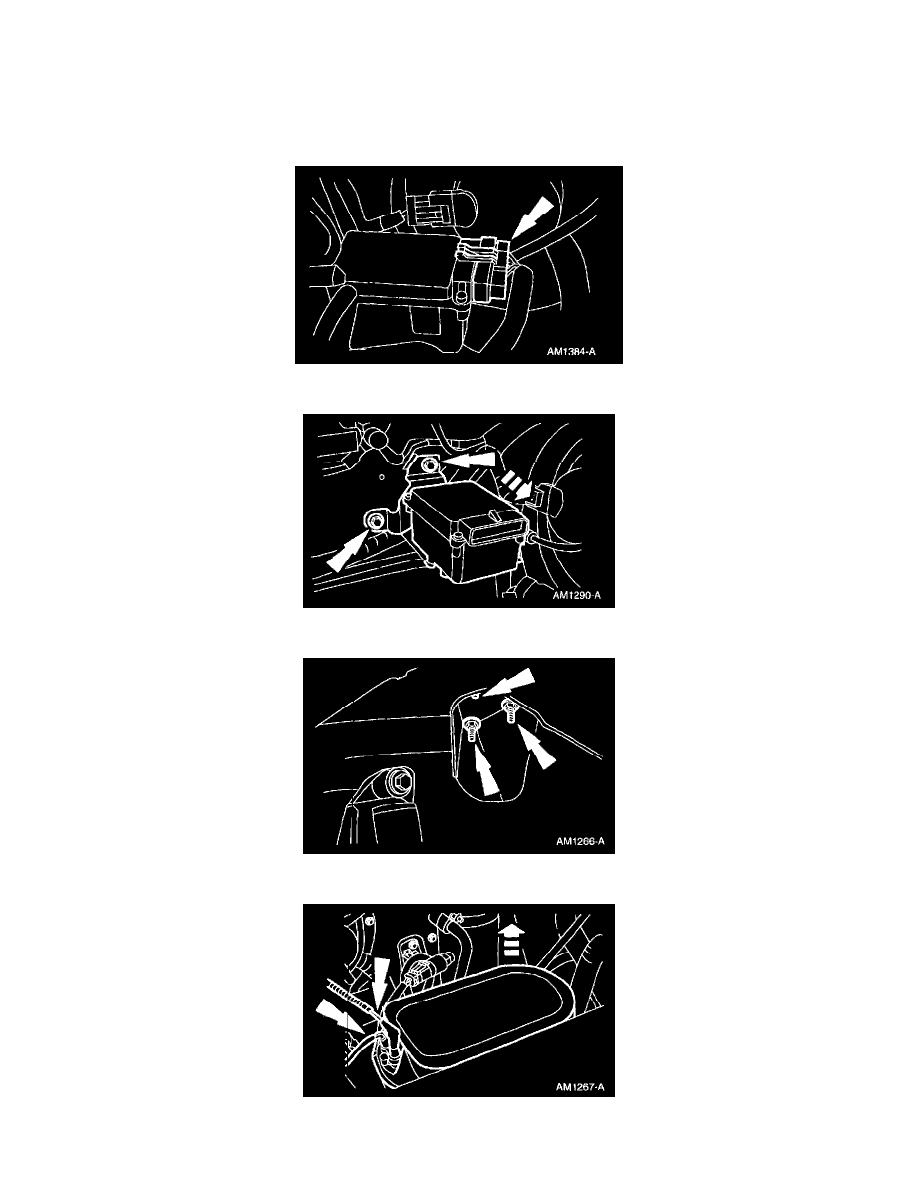

REMOVAL
1. Remove the suction accumulator/drier. See: Accumulator HVAC/Service and Repair
2. Drain the radiator.
3. Remove the RH battery.
4. Disconnect the speed control servo connector.
5. Remove the bolts and remove the speed control servo.
6. Remove the nuts from the vacuum reservoir tank.
7. Disconnect the vacuum hoses and remove the vacuum reservoir tank.
