Ford Workshop Service and Repair Manuals > F 450 4WD Super Duty V8-6.4L DSL Turbo (2008) > Engine, Cooling and Exhaust | Engine | Actuators and Solenoids - Engine | Variable Valve Timing Solenoid | Component Information | Locations | Variable Camshaft Timing Solenoid (VCT) 1

Variable Camshaft Timing Solenoid (VCT) 1|Page 2367 > < Vehicle Lifting|Description and Operation|Page 2359

Page 1

background image

View 151-4

Engine, Cooling and Exhaust
Engine
Actuators and Solenoids - Engine
Variable Valve Timing Solenoid
Component Information
Locations

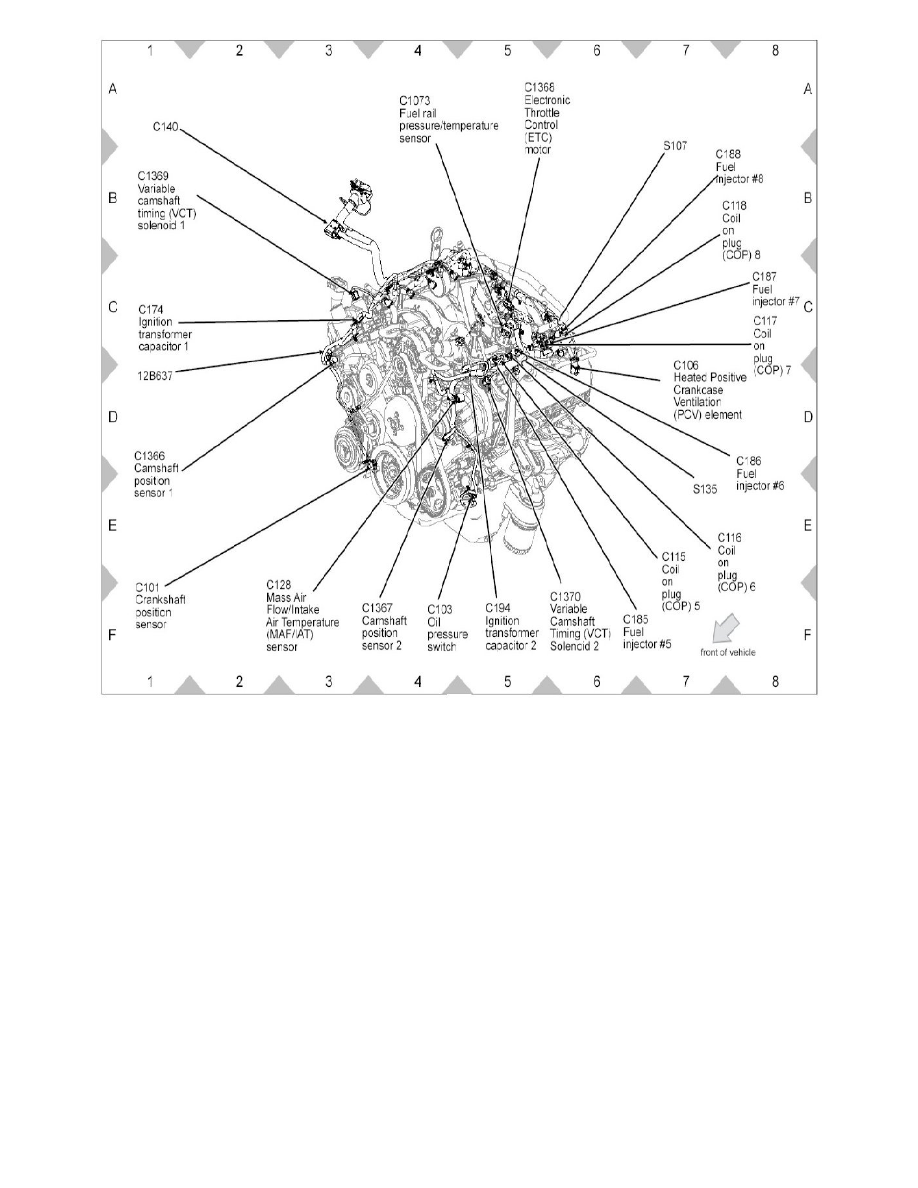

Variable Camshaft Timing Solenoid (VCT) 1
