F 550 2WD Super Duty V10-6.8L VIN Z Bi-Fuel (2001)
Battery Cable: Service and Repair
Battery Cables - Gasoline Engines
Battery Cables - Gasoline Engines

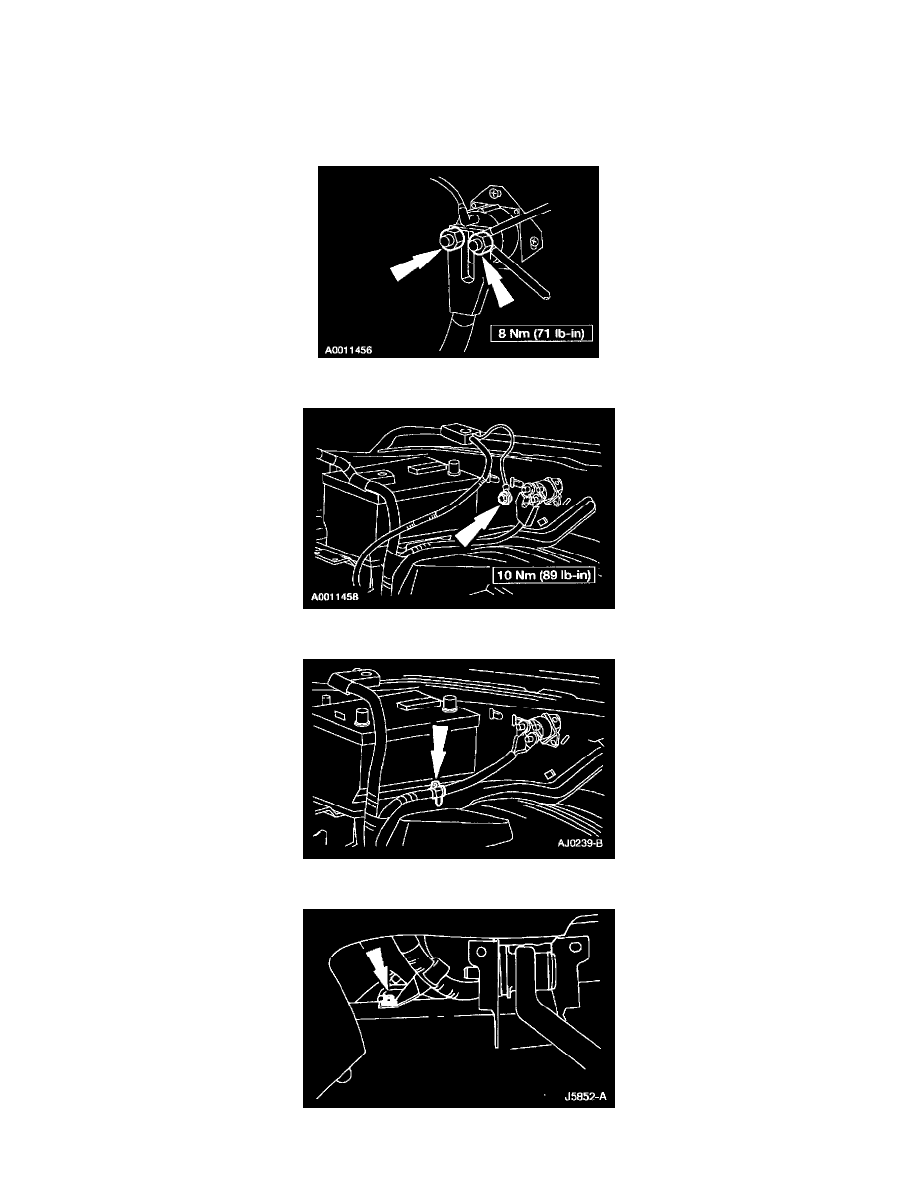

REMOVAL
1. Disconnect the battery cables.
2. Remove the nuts.
3. Remove the battery ground cable screw and remove the cable.
4. Remove the pill-type retainer retaining the battery cable harness to the battery tray.
5. Remove the screw located on top of the frame rail.
