F 550 2WD Super Duty V10-6.8L VIN Z Bi-Fuel (2001)
Axle Beam: Service and Repair
Front - 4X2
Axle - F-450, F-550

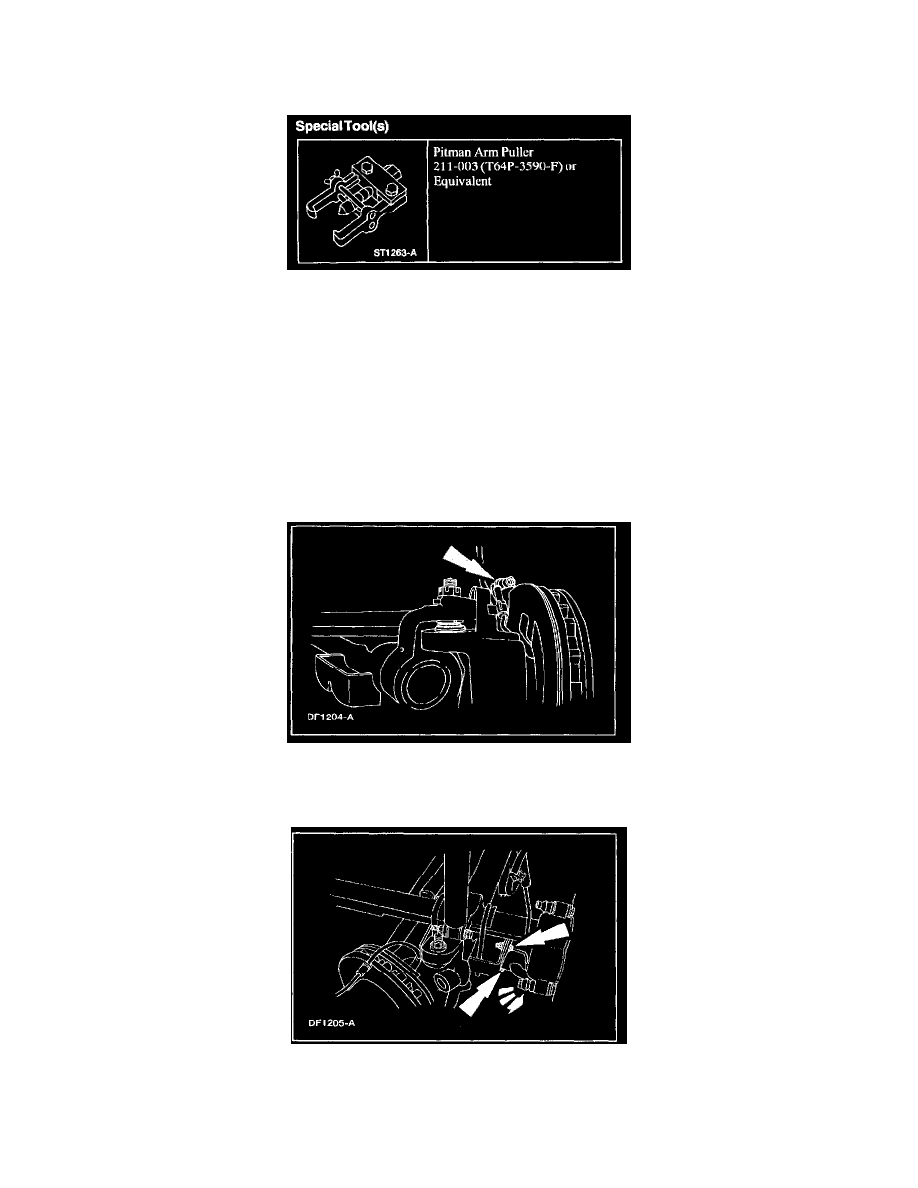

Special Tool(s)
Special Tool(s)
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in
major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement
part of lesser quality or substitute design. Torque values must be used as specified during re-assembly to ensure proper retention of these parts.
1. Raise and support the vehicle.
2. Remove the front wheels and tire assemblies.
3. Remove the front disc brake calipers and position out of the way.
4. If equipped, disconnect the front disc brake ABS sensor harness connectors and position harness out of the way.
5. Using a suitable jack, equipped with safety chains, support the front axle.
6. Remove the front shock absorbers.
7. Remove and discard the bolts from the stabilizer bar mounting brackets to axle, and position out of the way.
