F 550 2WD Super Duty V8-7.3L DSL Turbo VIN F (2002)
Trunk / Liftgate Latch: Service and Repair
Liftgate Latch Remote Control
REMOVAL

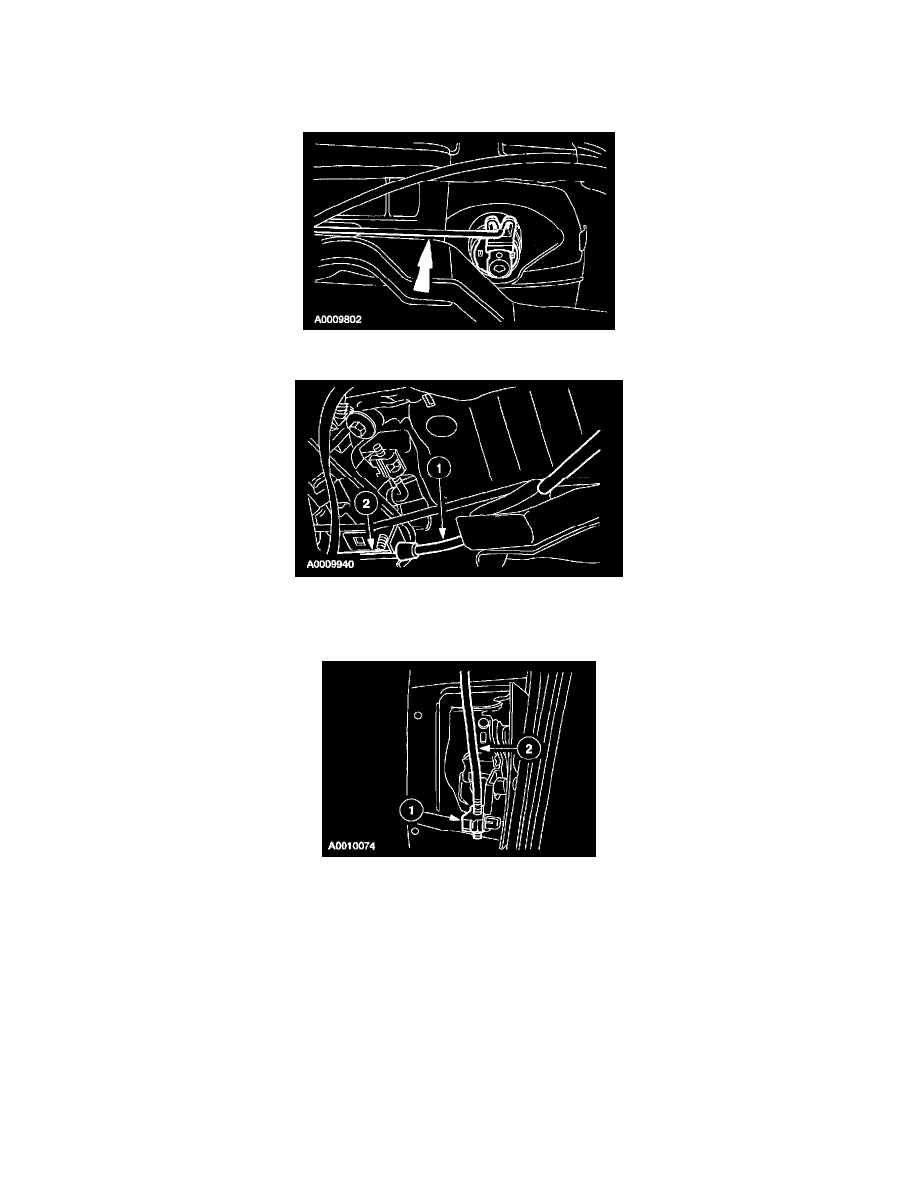

1. Remove the liftgate trim panel.
2. Disconnect the lock cylinder actuator rod.
3. Disconnect the LH and RH liftgate latch cables.
1
Disconnect the cable conduit.
2
Disconnect the cable.
4. Disconnect the exterior liftgate handle actuating rod.
1
Open the locking clip.
2
Disconnect the actuating rod.
