Flex FWD V6-3.5L (2010)
Front Door Window Glass Weatherstrip: Service and Repair
Door Glass Top Run - Front
Door Glass Top Run - Front
Removal and Installation
NOTE: The LF window motor must be de-initialized, then initialized whenever the window motor is removed from the window regulator drum housing,
a new window regulator is installed, a new window glass is installed, a new top run is installed or for any operation in which grease or lubricants are
applied to the window regulator or glass run.
NOTE: If installing a new door glass top run, the door glass top run and door glass run retainer are replaced as an assembly.
1. Remove the front door window glass. For additional information, refer to Window Glass - Front Door See: Service and Repair/Window Glass -
Front Door.
2. Remove the exterior mirror assembly. For additional information, refer to Mirrors.
3. Position aside the front door glass top run.

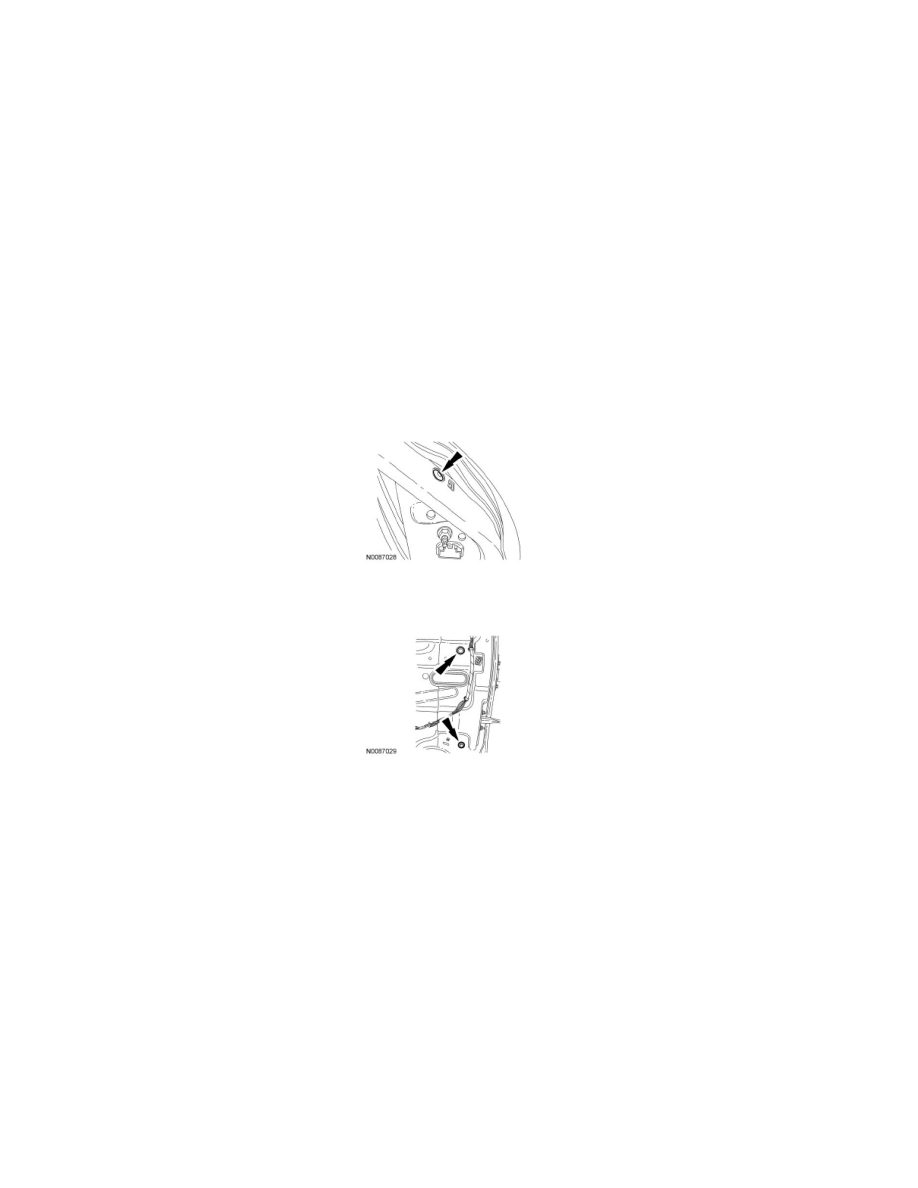

4. Remove the door glass run retainer top screw.
-
To install, tighten to 5 Nm (44 lb-in).
5. Remove the tape covering the access hole, then remove the 2 door glass run retainer bolts.
-
To install, tighten to 8 Nm (71 lb-in).
6. Remove the door glass run retainer through the large opening in the door.
7. To install, reverse the removal procedure.
-
For LF only, de-initialize, then initialize the window regulator motor. For additional information, refer to Window Motor Initialization See:
Service and Repair.
