Focus L4-2.0L DOHC VIN 5 (2003)

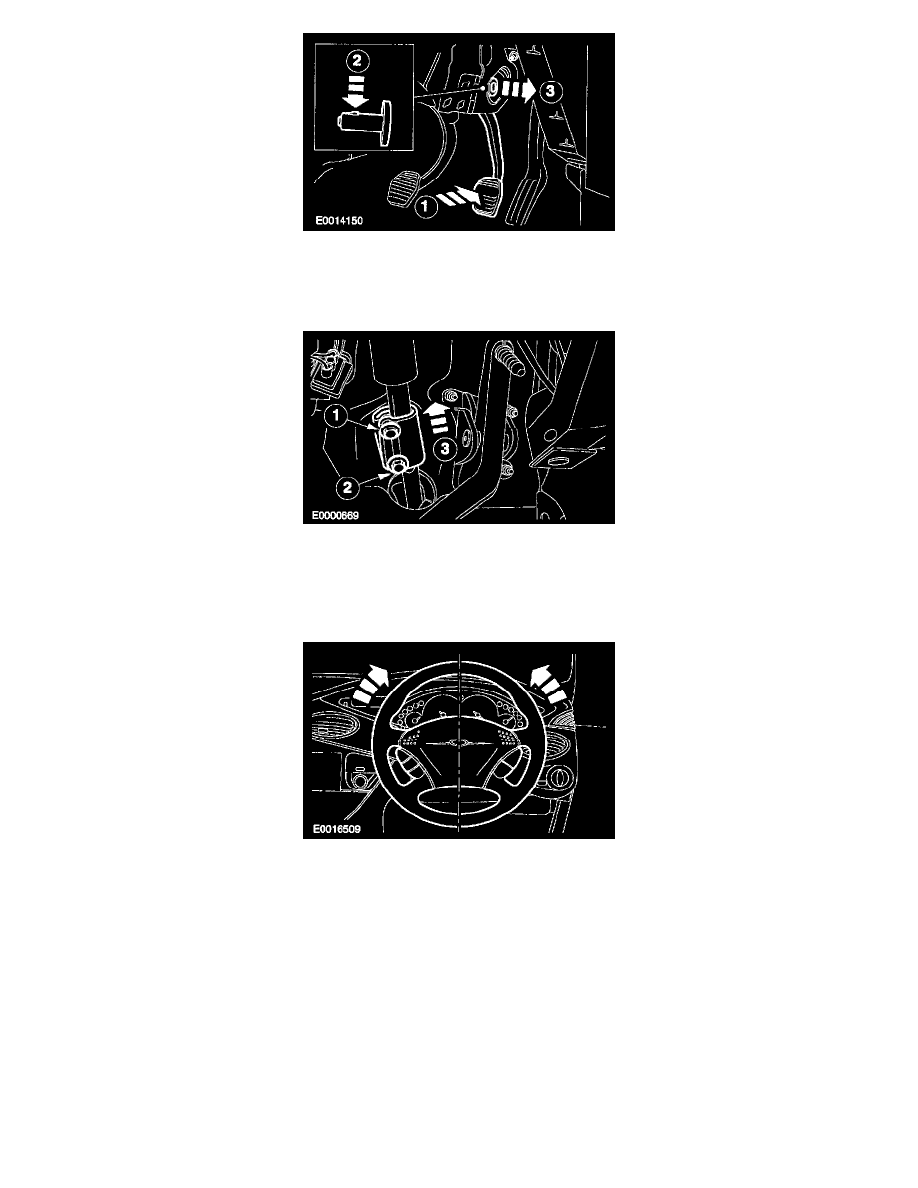

8. Detach the brake booster actuating rod from the brake pedal.
1
Depress the brake pedal.
2
Depress the clip.
3
Remove and discard the brake booster actuating rod pin.
Right-hand drive vehicles built up to 12/1998
9. Disconnect the steering column shaft from the steering gear pinion extension.
1
Loosen the upper bolt.
2
Remove the lower bolt.
3
Move the sleeve upwards.
Right-hand drive vehicles built 12/1998 onwards
10. NOTE: Make sure the road wheels are in the straight ahead position.
Centralize the steering and lock it in position.
