Focus L4-2.0L DOHC VIN 5 (2003)
7. Disconnect the throttle position (TP) sensor electrical connector.

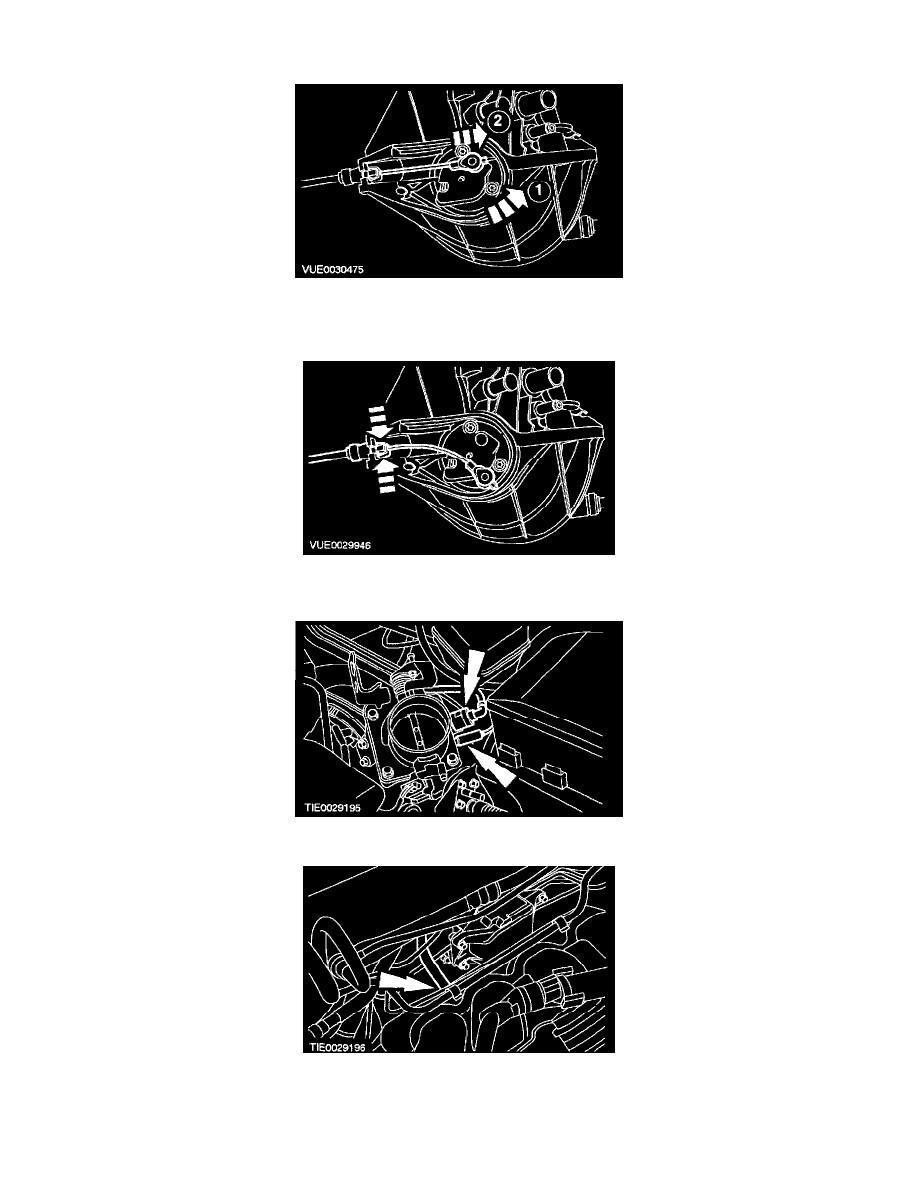

8. Detach the intake manifold runner control (IMRC) actuator cable from the IMRC lever (intake manifold assembly shown removed for clarity).
1
Rotate the IMRC lever.
2
Remove the IMRC actuator cable.
9. Disconnect the IMRC actuator cable from the intake manifold assembly (intake manifold assembly shown removed for clarity).
^
Release the IMRC actuator cable locking tangs.
10. Disconnect the vacuum hoses from the throttle body.
11. Detach the brake booster pipe from the intake manifold.
^
Release the quick release coupling and pull out the brake booster pipe.
