Focus L4-2.0L SOHC VIN P (2000)
Transmission Mode Indicator - A/T: Description and Operation
Park / Reverse Gear Lever Position Warning

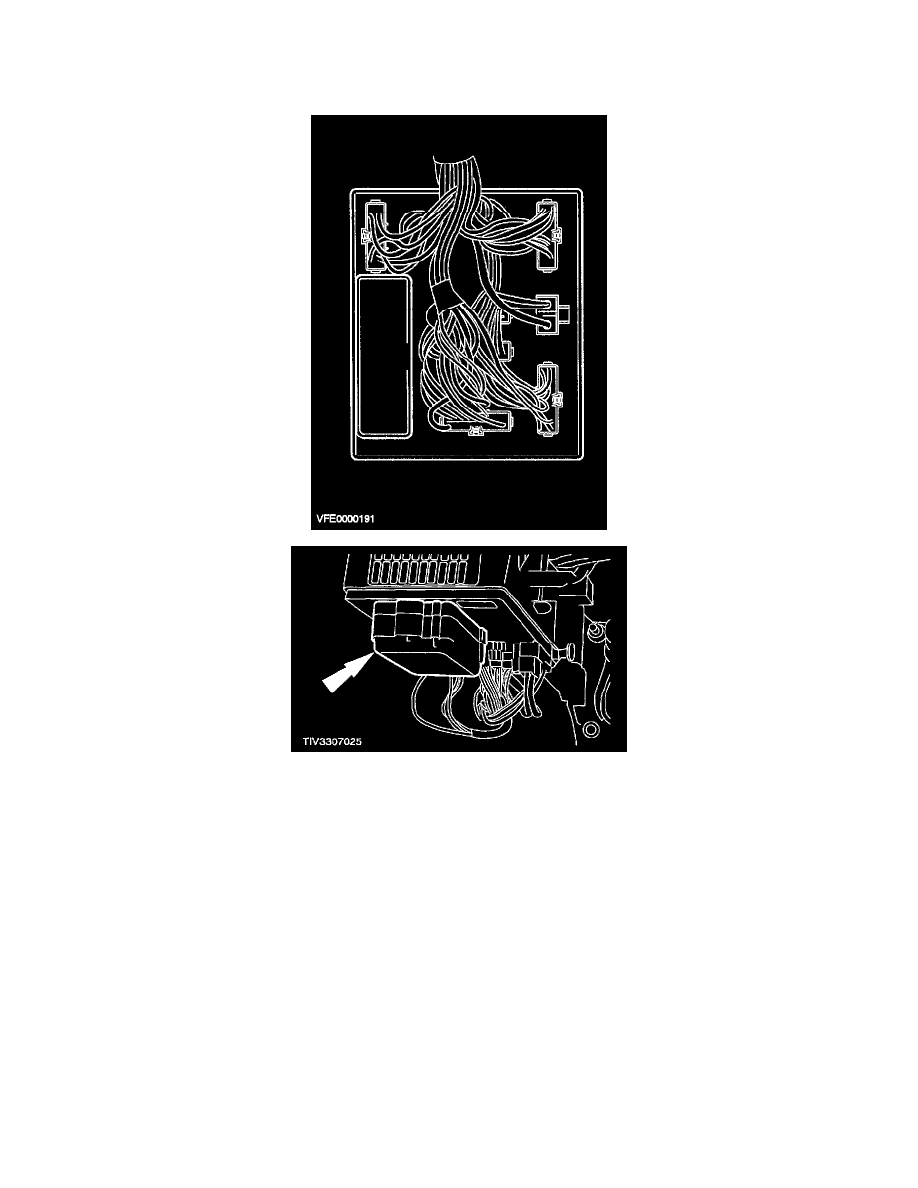

Central Timer Module (CTM)
This module has two versions:
^
a standard version for vehicles with manual transmission
^
an extended version for vehicles with automatic transmission
Functions of the CTM standard version:
^
Intermittent wiper, front
^
Intermittent wiper, rear
^
Rear window washer with wiper function
^
Front windscreen washer with wiper function
^
Heated rear window
^
Heated windscreen
^
Entry Illumination
^
Power saving relay
^
Required acoustic signal from trip computer module, anti-theft warning system/double locking module and airbag module
^
Lights-on Warning Chime Unit
Additional functions of the CTM extended version:
^
Safety belt warning
^
Reverse gear warning
^
Ignition key warning
^
Warning - shift lever not in park position
