Focus L4-2.0L VIN N (2006)

  • Body and Frame
  • Bumper
  • Front Bumper
  • Front Bumper Cover / Fascia
  • System Information
  • Service and Repair

Page 1
background image

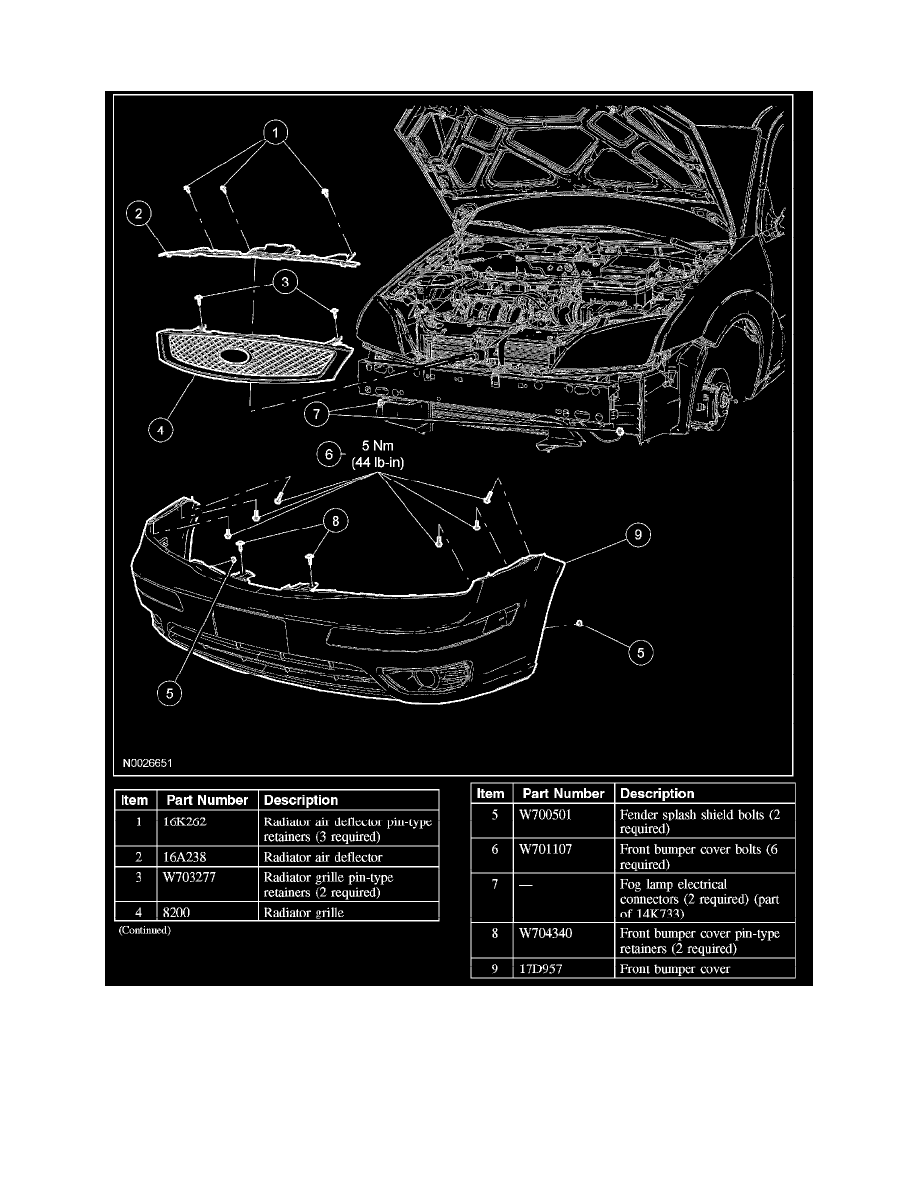

Front Bumper Cover / Fascia: Service and Repair

BUMPER COVER - FRONT

Removal and Installation

1. Remove the 3 pin-type retainers and the radiator air deflector.
