Focus L4-2.0L VIN N (2006)
Cowl Moulding / Trim: Service and Repair

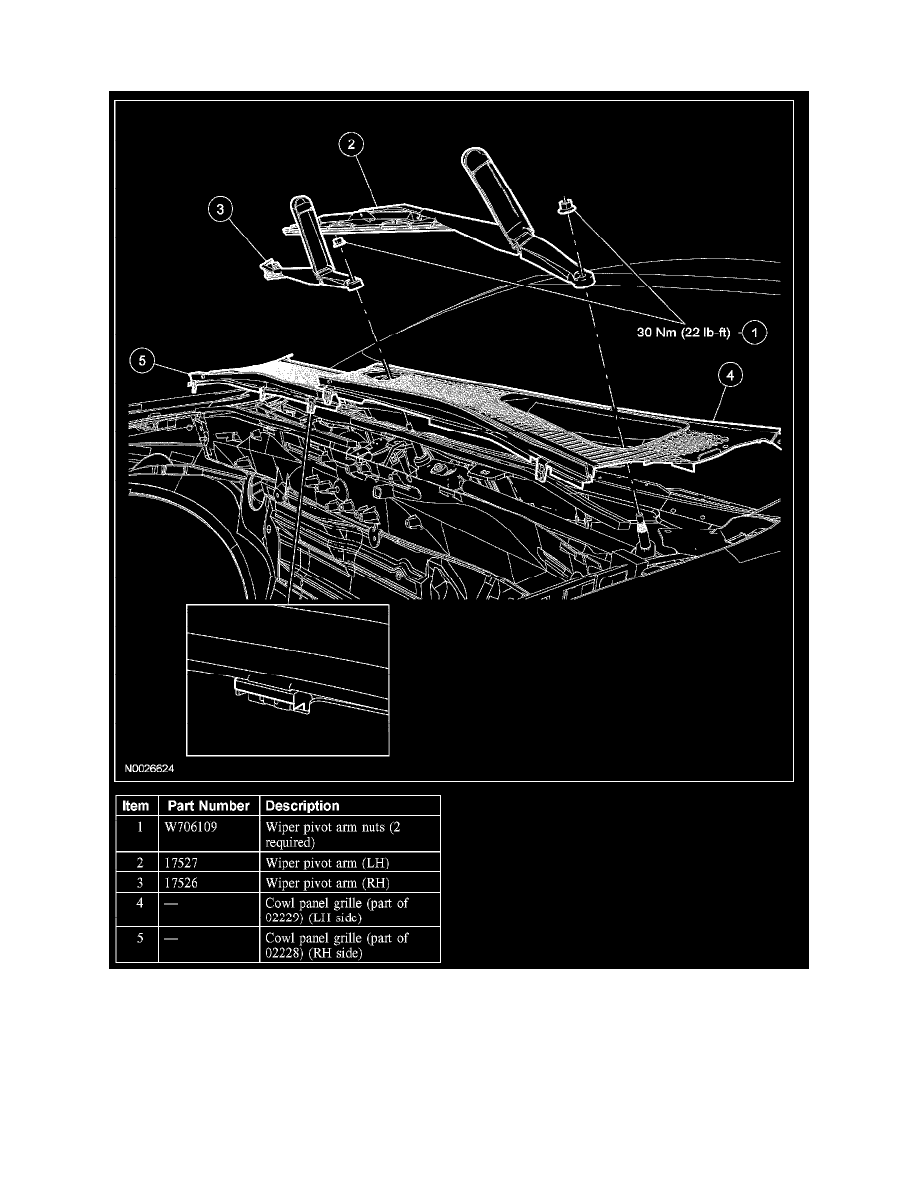

COWL PANEL GRILLE
Removal and Installation
1. Remove the 2 nuts and the 2 wiper pivot arms.
-
To install, tighten to 30 Nm (22 lb-ft).
2. NOTE: The LH cowl panel grille must be removed prior to removing the RH cowl panel grille.
Release the clips and remove the LH and RH cowl panel grilles.
-
Release the cowl panel grilles from the windshield moulding.
