Focus L4-2.0L VIN N (2006)
Heater Core Case: Service and Repair

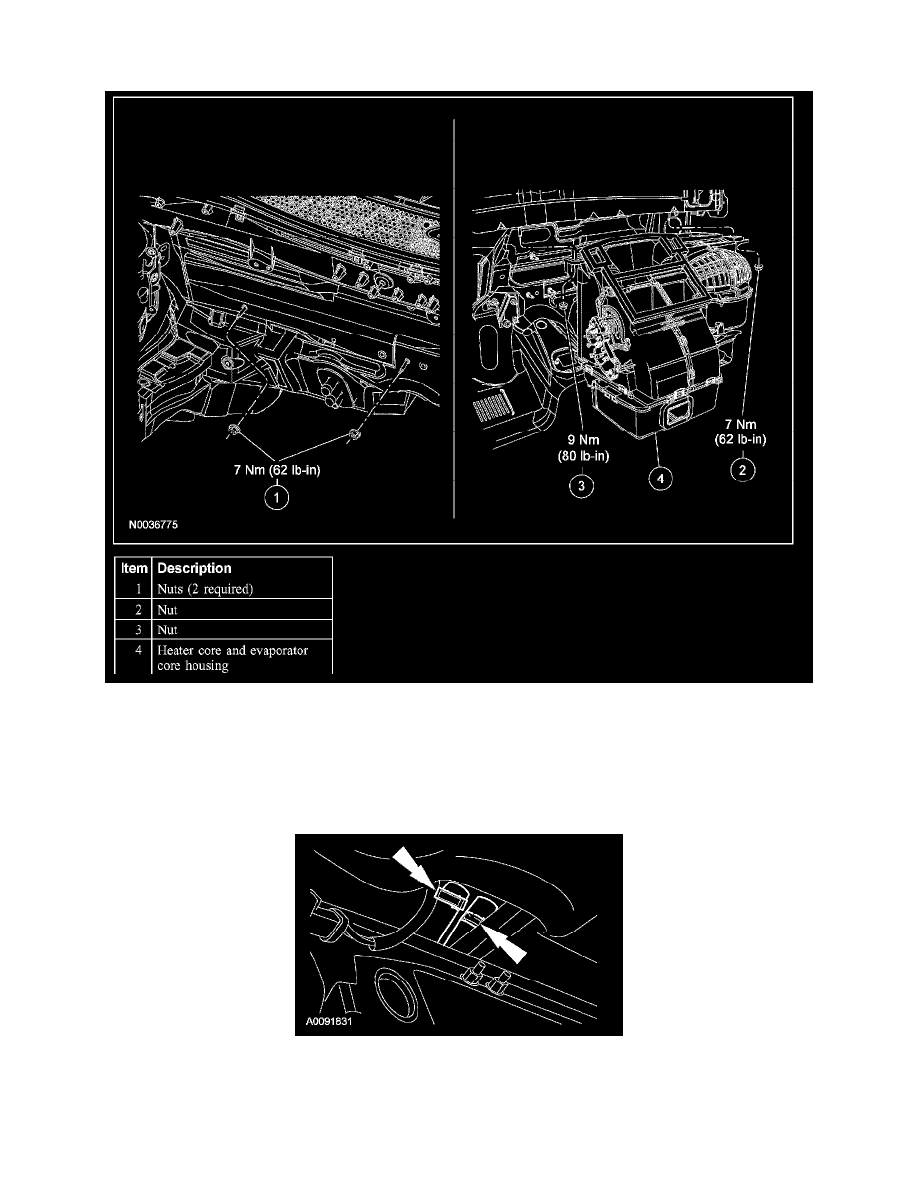

HEATER CORE AND EVAPORATOR CORE HOUSING
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Recover the refrigerant.
3. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, See: Body
and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair
4. Drain the cooling system.
5. Disconnect the coolant hoses from the heater core.
