Focus L4-2.0L VIN N (2006)
Wheel Fastener: Service and Repair
Front
Wheel Studs

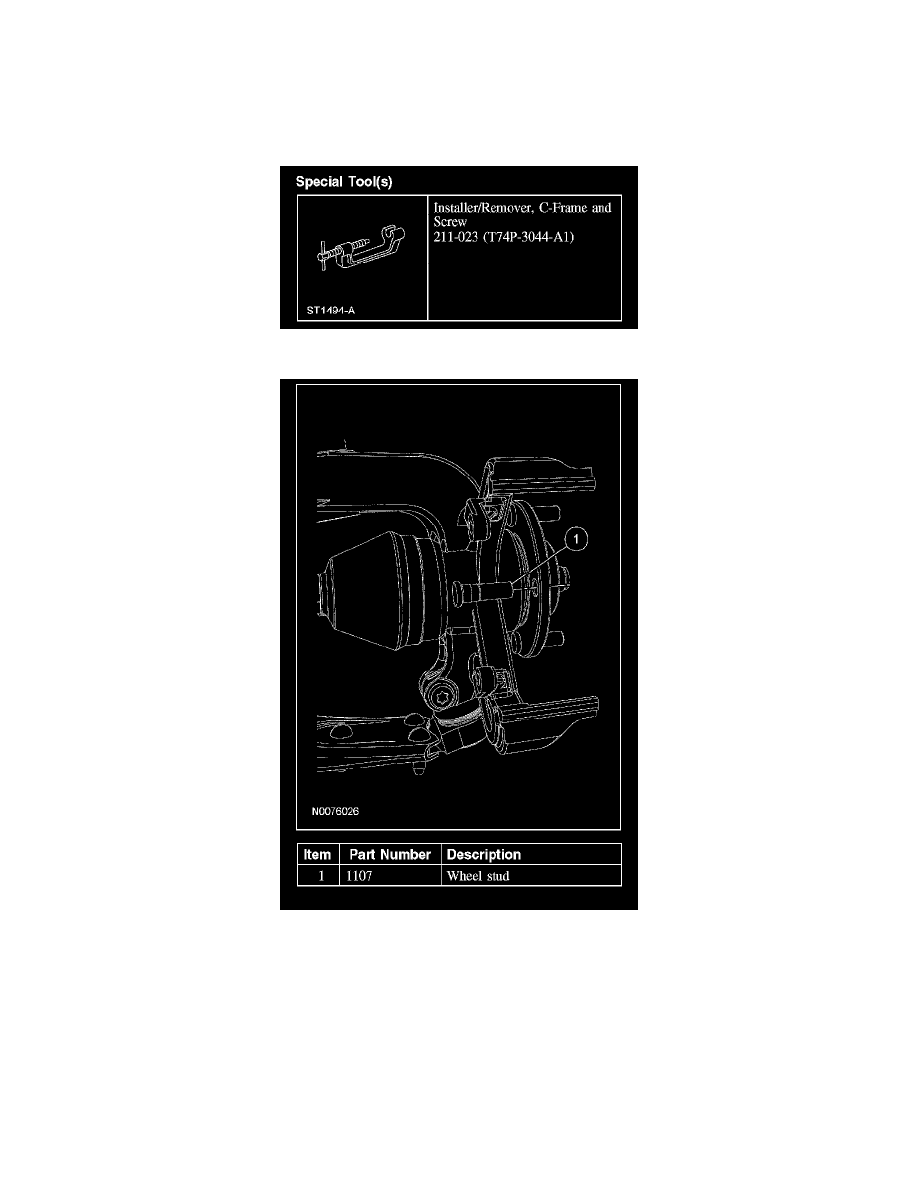

Special Tool(s)
Special Tool(s)
Removal
1. CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure
may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is
necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly
to make sure correct retention of these parts.
NOTE: Make sure the steering wheel is in the UNLOCKED position.
Remove the brake disc.
2. Using the special tool, remove the wheel stud.
