Focus L4-2.0L VIN N (2006)
Pressure Plate: Service and Repair

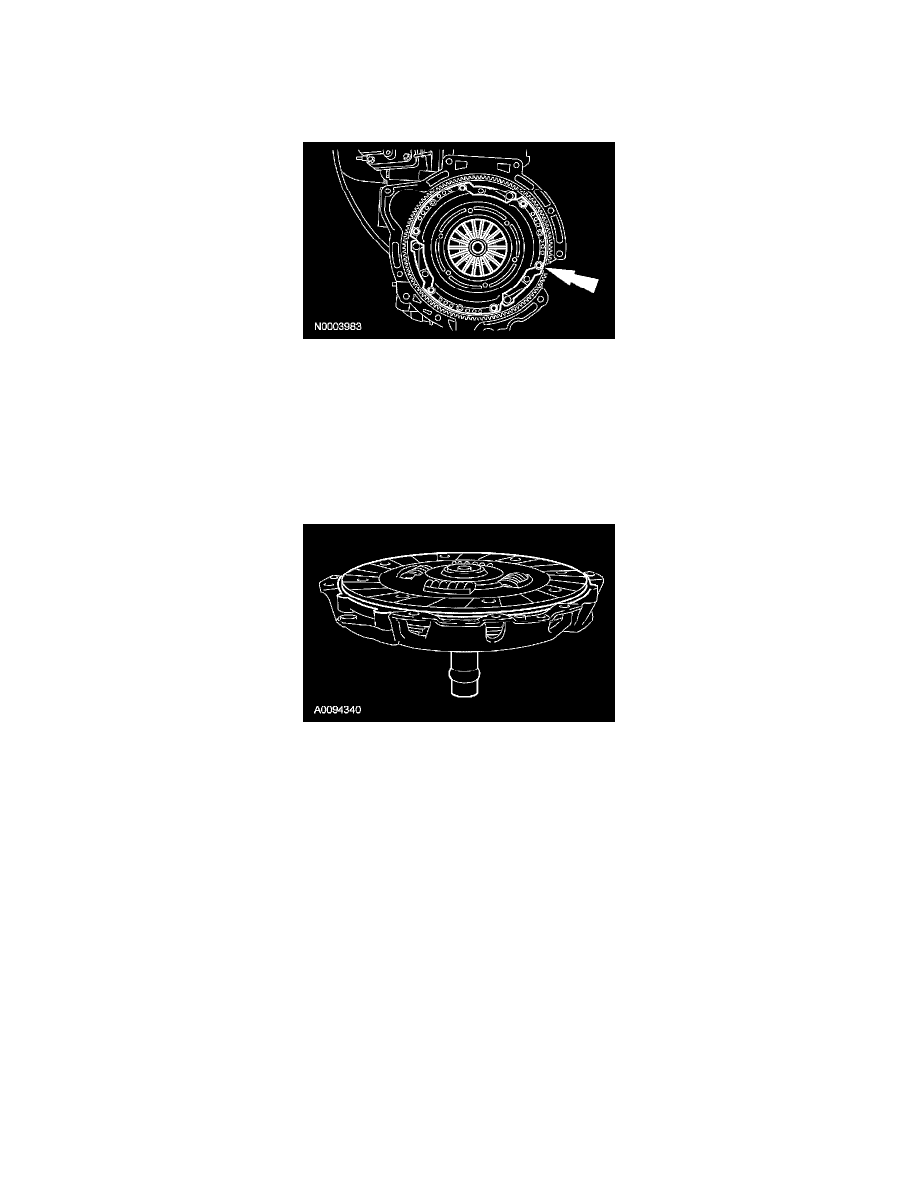

Clutch Disc and Pressure Plate
Removal
1. Remove the transaxle.
2. CAUTION: Loosen the clutch pressure plate-to-flywheel bolts evenly, by 2 turns at a time.
Remove the clutch pressure plate-to-flywheel bolts, the clutch disc and the pressure plate. Discard the bolts.
Installation
NOTE: Clean the clutch pressure plate and flywheel with a commercial alcohol-based solvent so surfaces are free from oil film.
Do not use cleaners with a petroleum base. Do not immerse the clutch pressure plate in solvent.
1. Position the clutch disc on the clutch pressure plate. Using a suitable clutch aligner, centralize the clutch disc to the clutch pressure plate.
