Focus L4-2.3L VIN Z (2003)
Trunk / Liftgate Lock Cylinder: Service and Repair
3-Door/4-Door/5-Door

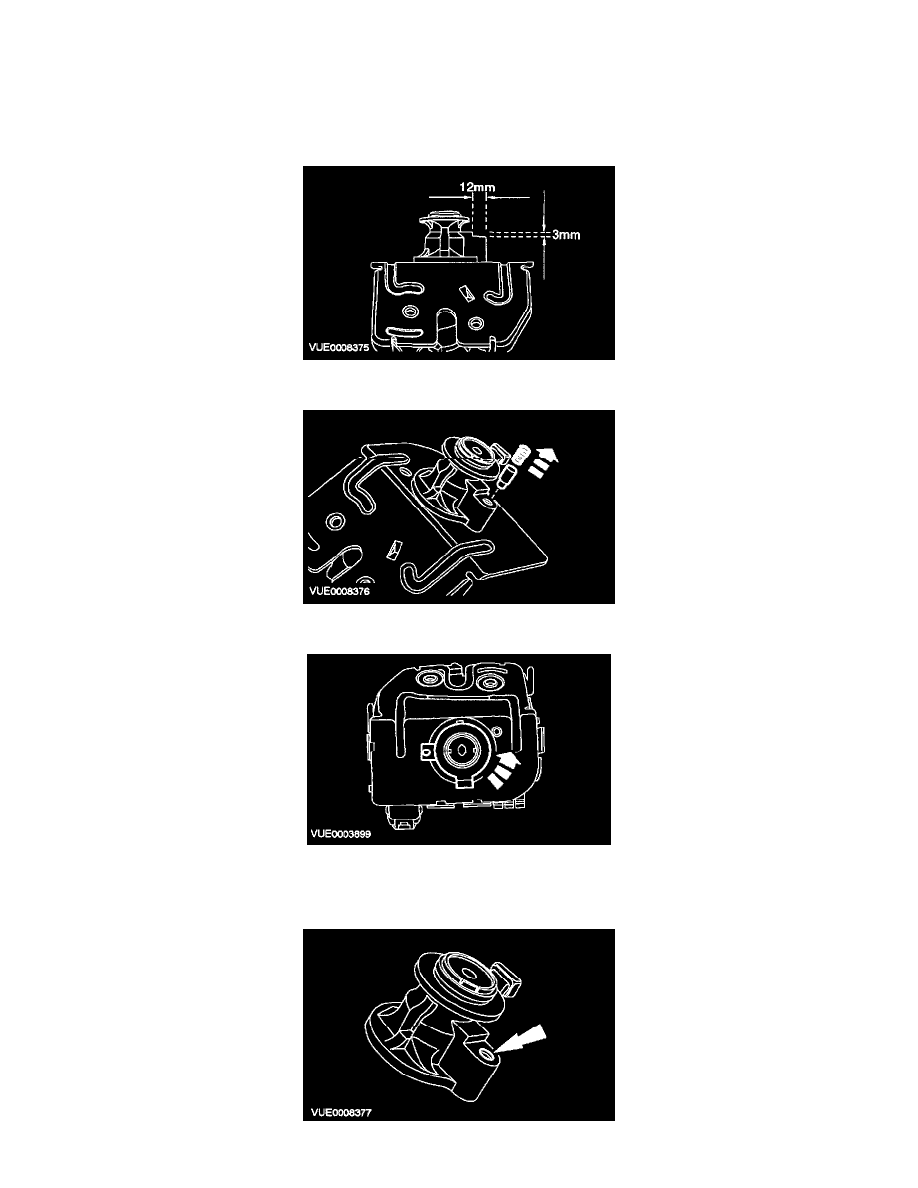

LIFTGATE LOCK CYLINDER - 3-DOOR/4-DOOR/5-DOOR
REMOVAL
1. Remove the liftgate latch.
2. File down the liftgate lock cylinder housing to expose the spring and plunger.
3. Remove the spring and plunger. Discard the spring.
4. Remove the liftgate lock cylinder.
INSTALLATION
