Focus L4-2.3L VIN Z (2003)
Front Fender Liner: Service and Repair
FENDER SPLASH SHIELD
Removal and Installation
1. Remove the wheel and tire assembly.

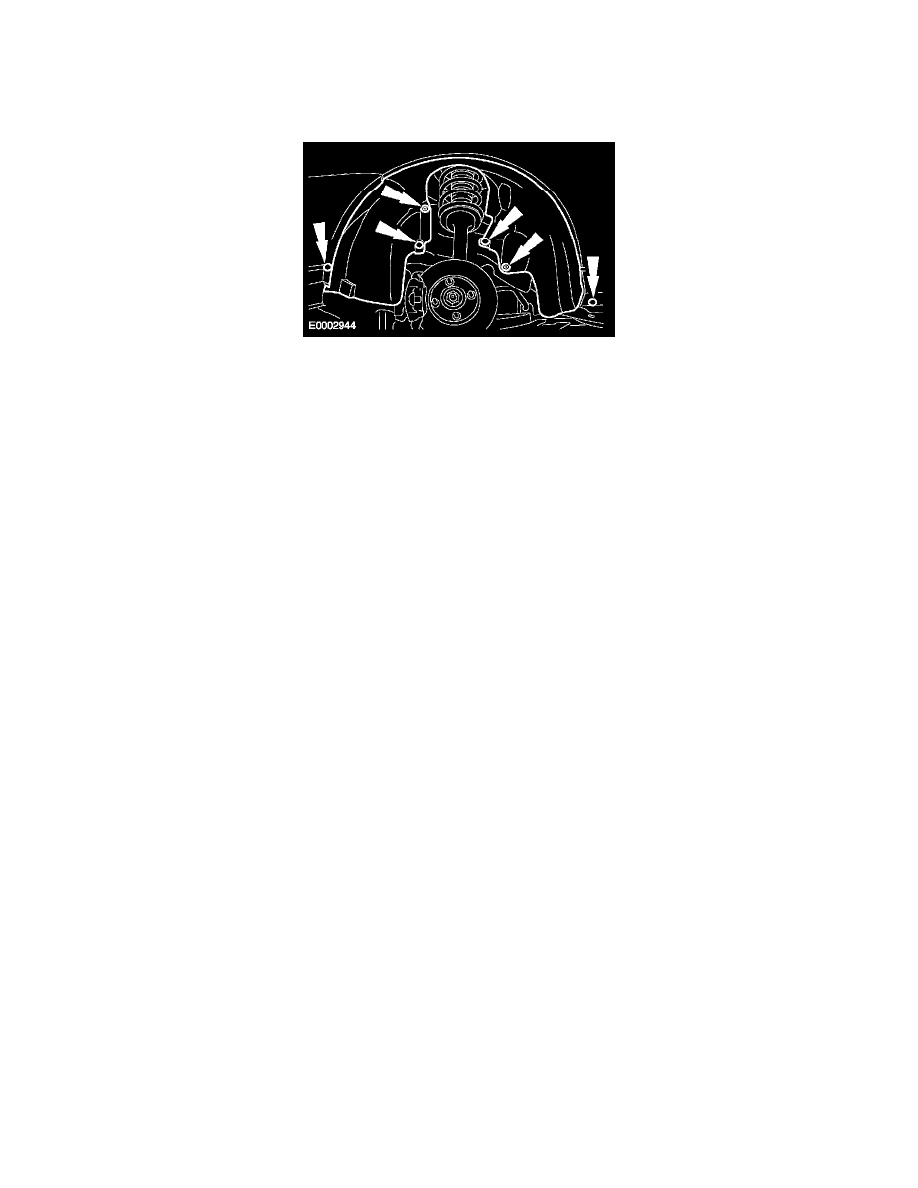

2. Remove the fender splash shield.
-
Remove the screws.
-
If equipped with the 2.3L engine, remove the two air cleaner cover shield bolts from the LH fender splash shield.
3. To install, reverse the removal procedure.
