Focus ZTS L4-2.0L DOHC VIN 3 (2001)
![background image](/ford/focus_zts/l4-2.0l_dohc_vin_3/Page-685001.png)
Timing Component Alignment Marks: Locations
NOTE:Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown
in this procedure.

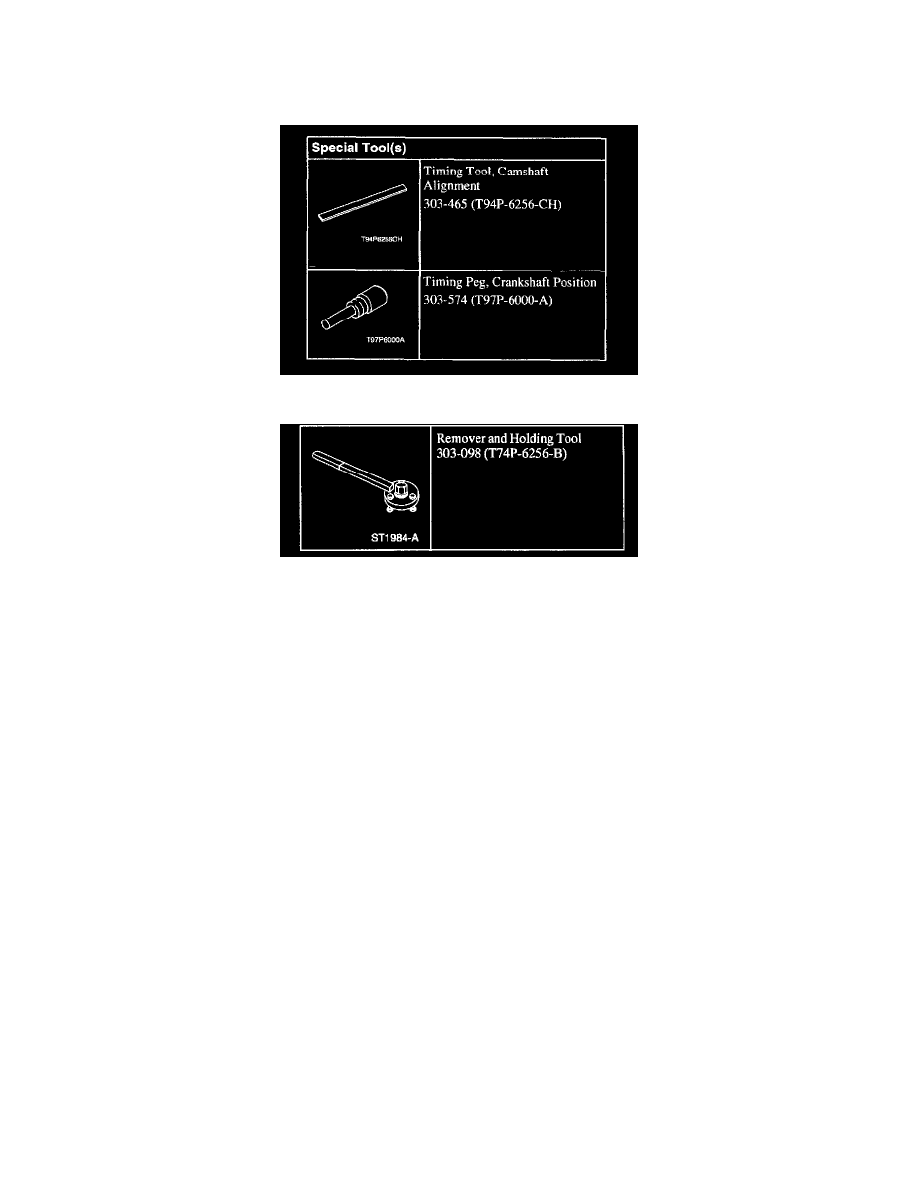

Special Tools
Special Tools
Special Tools
CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.
For complete Timing Belt Removal and Installation information: See: Timing Belt/Service and Repair
