Fusion FWD L4-2.3L (2008)
![background image](/ford/fusion_fwd/l4-2.3l/Page-2398001.png)
Ambient Light Sensor: Service and Repair

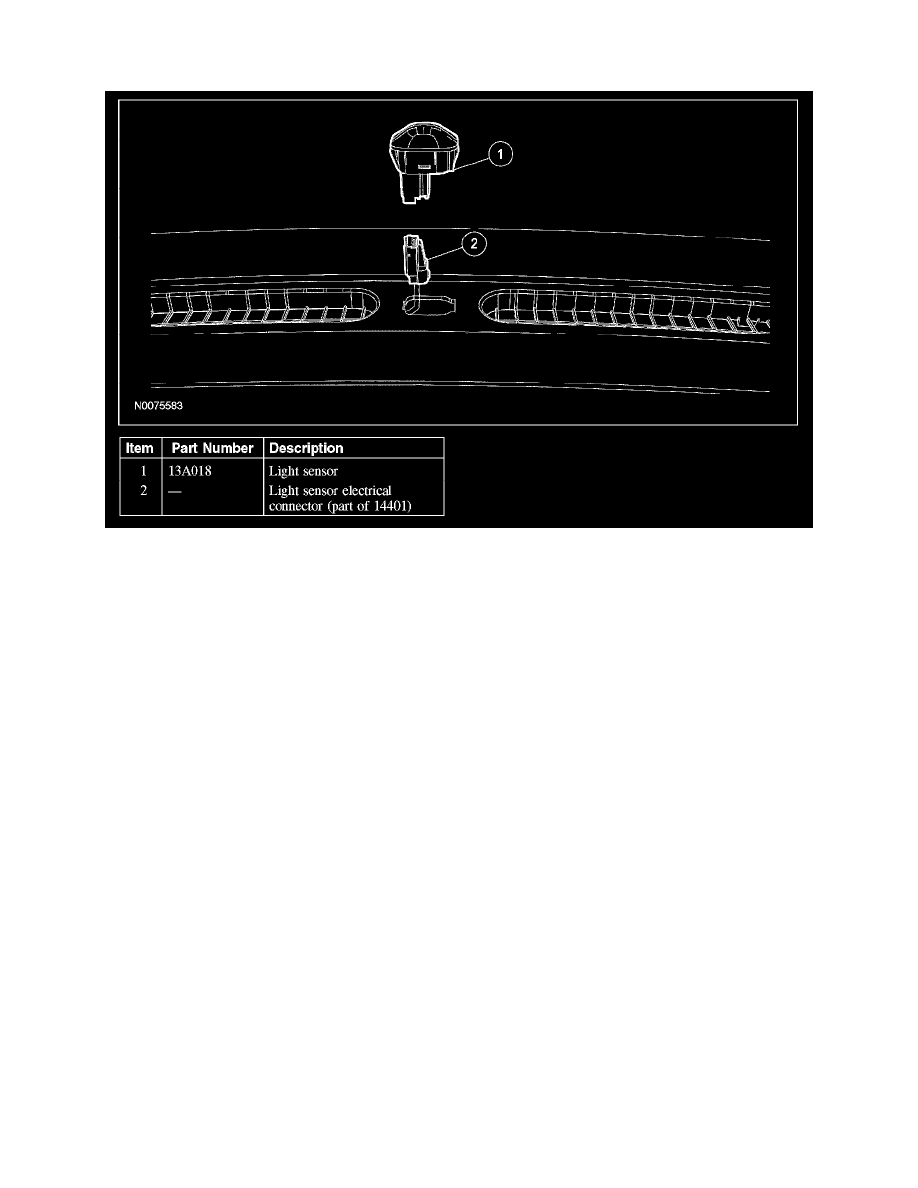

LIGHT SENSOR
Removal and Installation
1. Using a suitable tool, remove the light sensor from the defroster grille.
-
Disconnect the electrical connector.
2. To install, reverse the removal procedure.
