Fusion FWD L4-2.3L VIN Z (2007)
Amplifier: Service and Repair

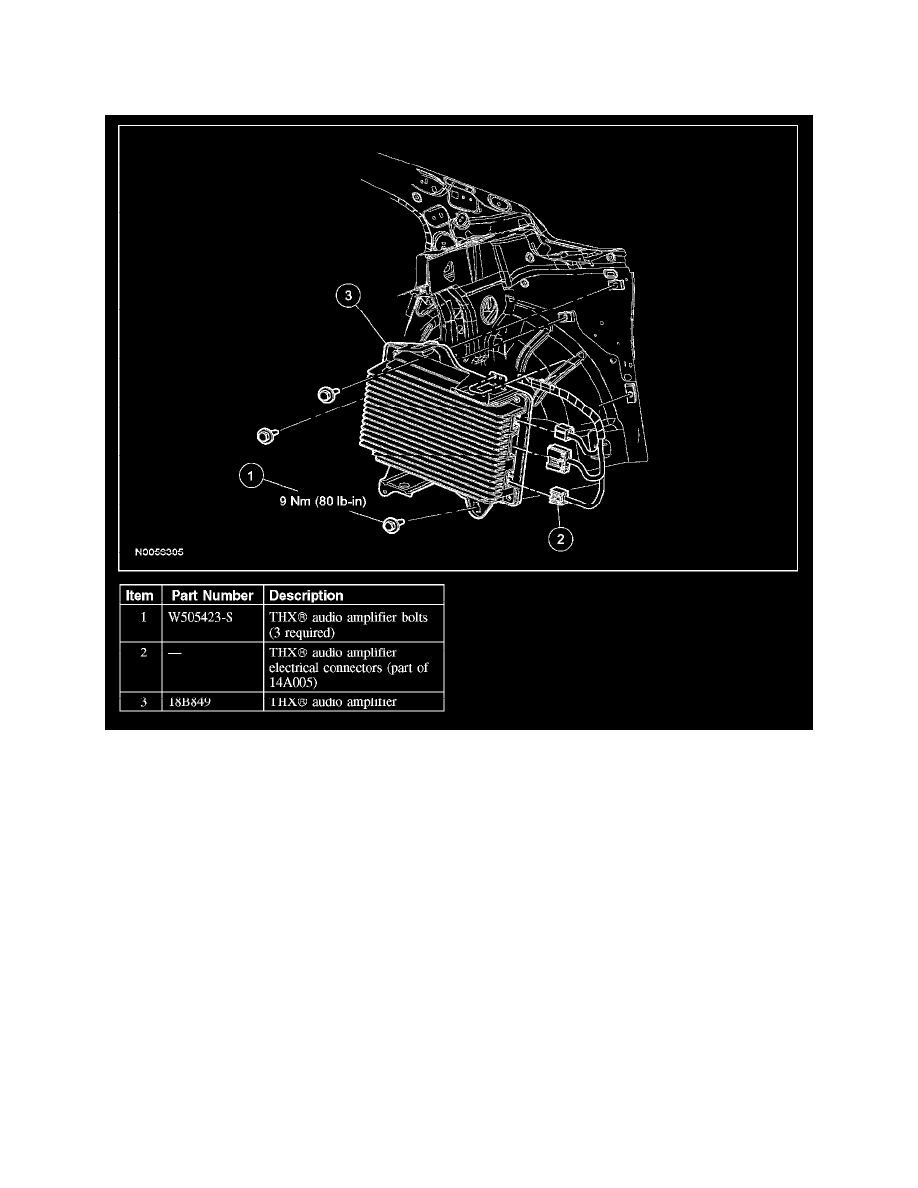

Audio Amplifier - THX(R)
AUDIO AMPLIFIER - THX(R)
Removal and Installation
1. Remove the 4 pushpins and the RH luggage compartment trim panel.
2. Disconnect the THX(R) audio amplifier electrical connectors.
3. Remove the 3 bolts and the THX(R) audio amplifier.
-
To install, tighten to 9 Nm (80 lb-in).
4. To install, reverse the removal procedure.
