Fusion FWD L4-2.3L VIN Z (2007)
Subframe Bushings - Front

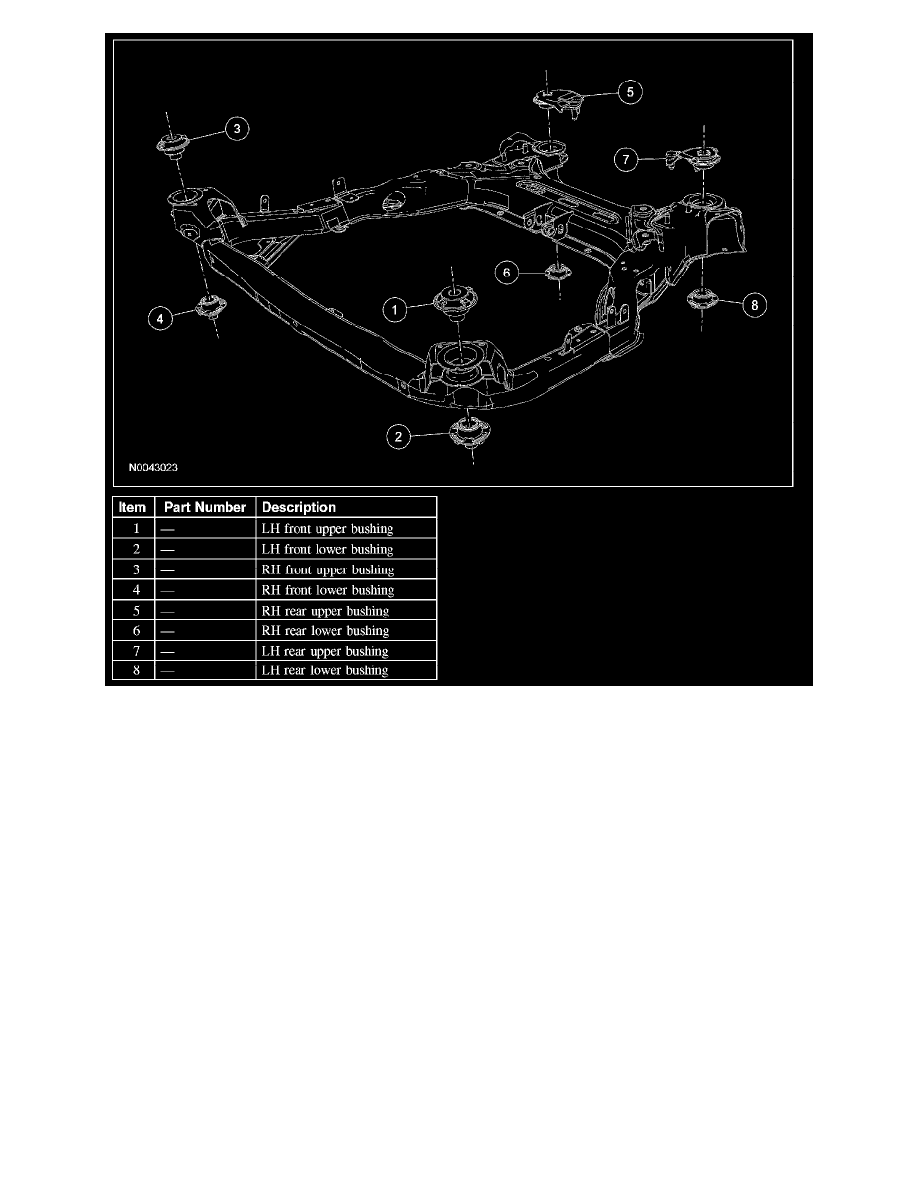

All bushings
1. Remove the front subframe. For additional information, refer to Subframe - Front.
Front bushings
2. CAUTION: Damage to the subframe may occur if a screwdriver is used to remove the front bushings or if the correct tools are not used.
Assemble the special tools to the groove between the upper and lower bushings and tighten.
