Fusion FWD L4-2.3L VIN Z (2007)

Page 10
background image

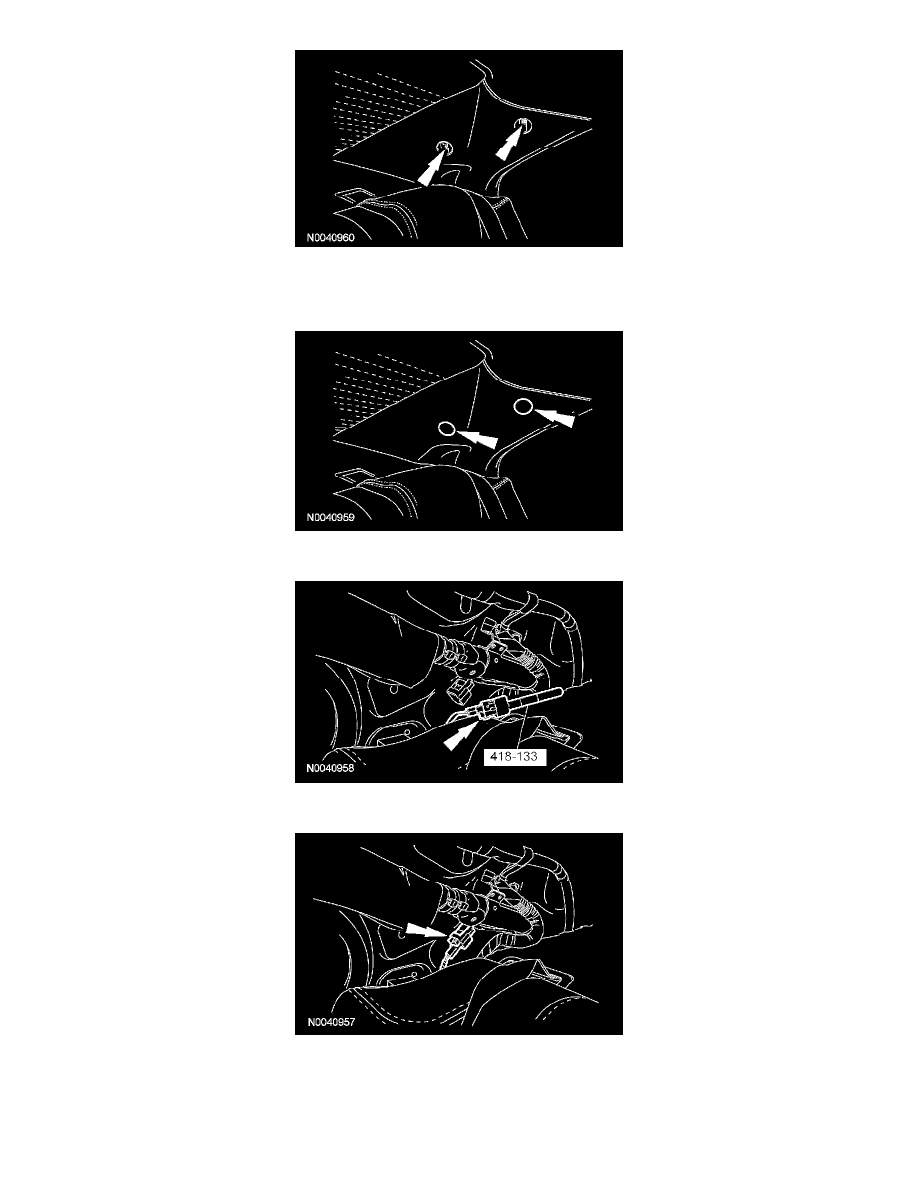

7. NOTE:  Fusion shown, Milan and MKZ similar.

Install the LH C-pillar trim cover and the retainers.

8. Install the LH C-pillar trim cover retainer caps.

9. Remove the restraint system diagnostic tool from the RH side air curtain module electrical connector.

10. Connect the RH side air curtain module electrical connector.
