Fusion FWD L4-2.3L VIN Z (2007)
Part 2

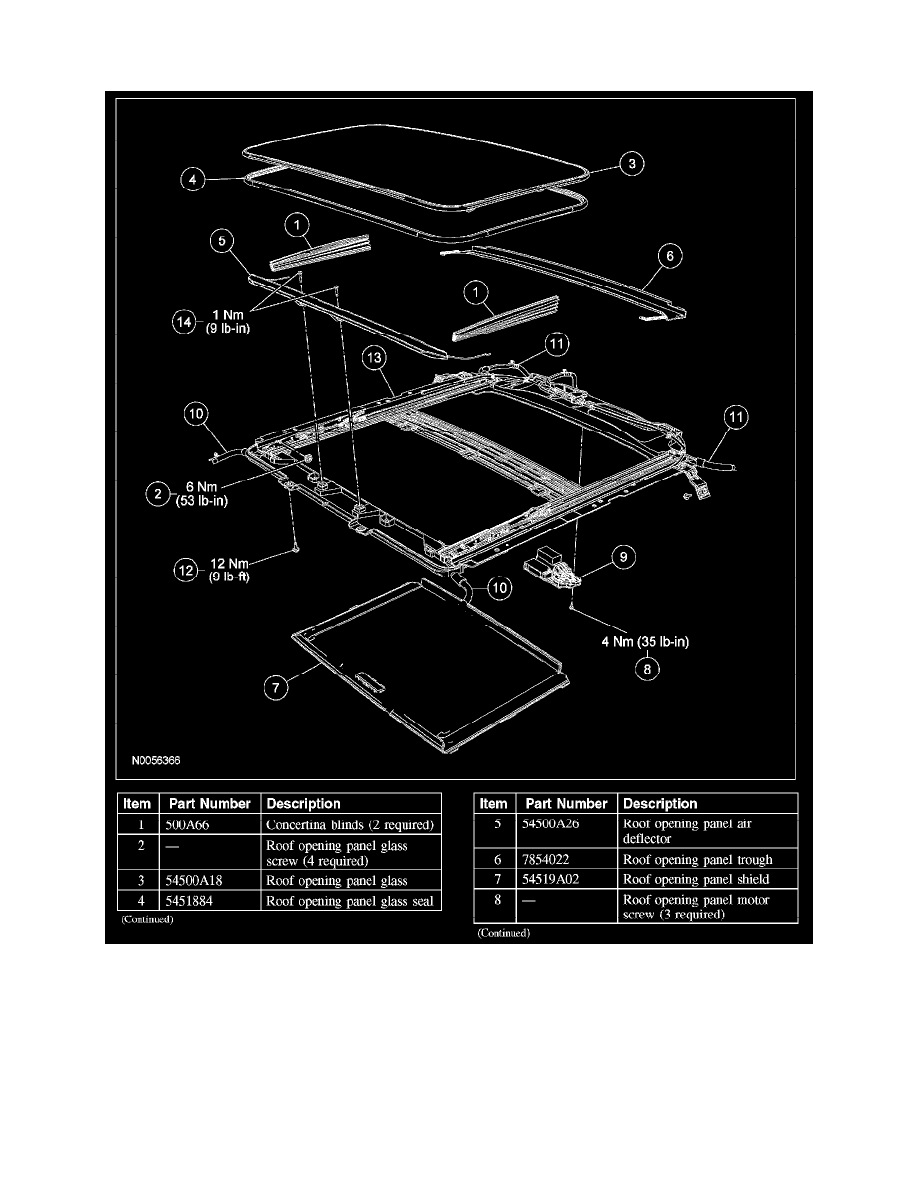

Exploded View
Removal and Installation
1. Position the roof opening panel glass to the full OPEN position.
2. Disengage the front portion of the roof opening panel air deflector. Remove the 2 screws.
-
To install, tighten to 1 Nm (9 lb-in).
3. Lift upward and pull to unlock the spring on each side to remove the air deflector assembly.
4. To install, reverse the removal procedure.
