Fusion FWD L4-2.3L VIN Z (2007)
Idler Pulley: Service and Repair
Accessory Drive Belt Idler Pulley
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

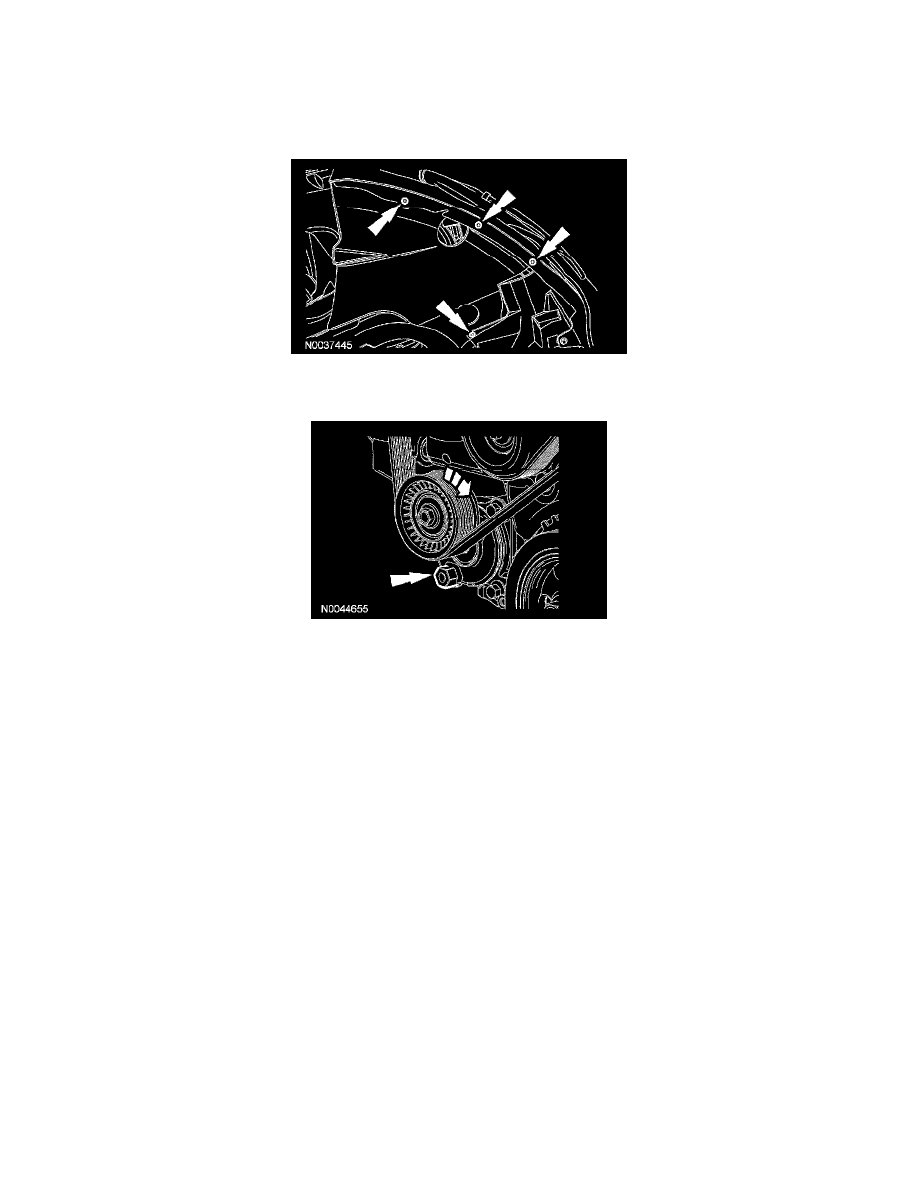

2. Remove the 4 screws and position the RH fender splash shield aside.
3. Remove the 6 pin-type retainers and the RH splash shield.
4. Using the hex feature, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the idler pulley.
5. Loosen the bolt and remove the accessory drive belt idler pulley.
^
To install, tighten to 48 Nm (35 ft. lbs.).
6. To install, reverse the removal procedure.
