Fusion FWD L4-2.3L VIN Z (2007)
Housing Assembly HVAC: Service and Repair

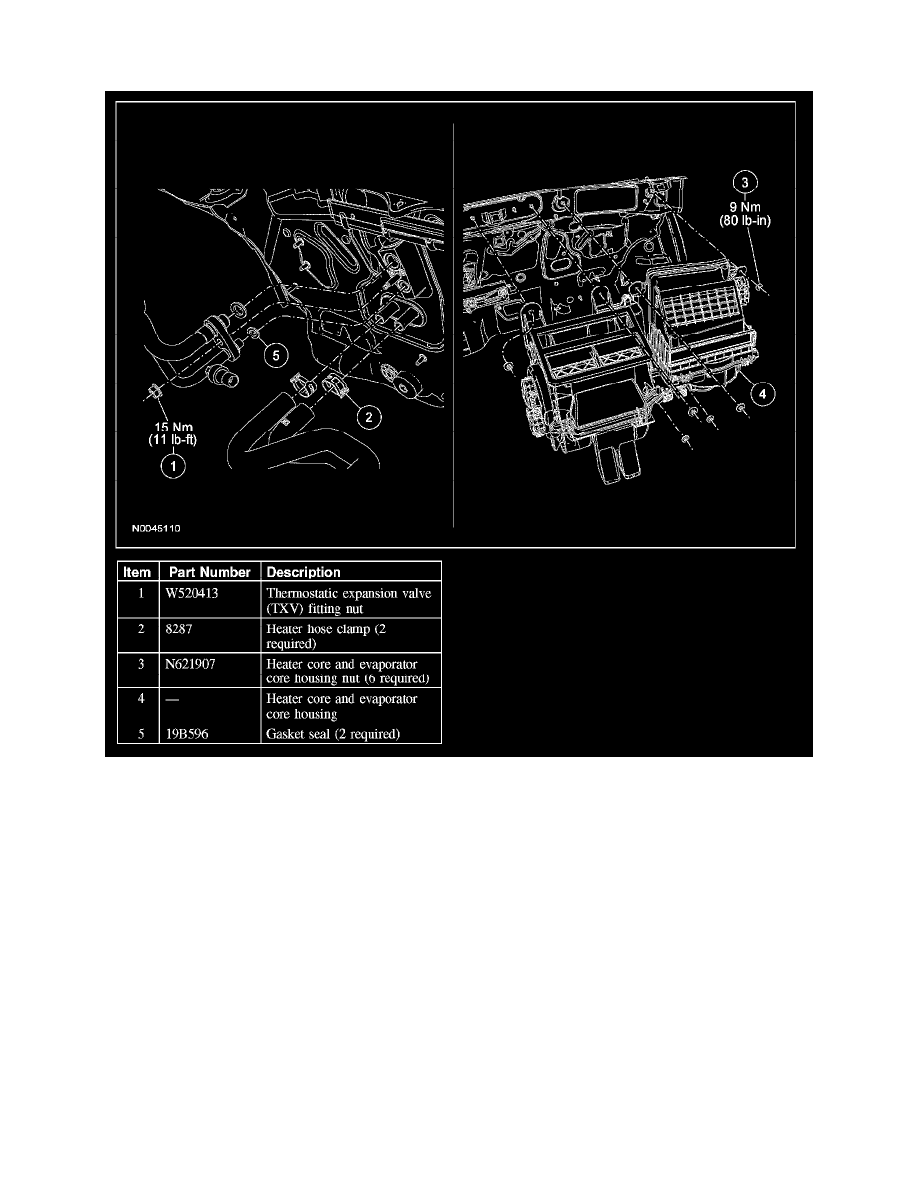

HEATER CORE AND EVAPORATOR CORE HOUSING
Removal and Installation
3.0L or 3.5L vehicles
1. Remove the lower cowl panel grille.
All vehicles
2. Recover the refrigerant.

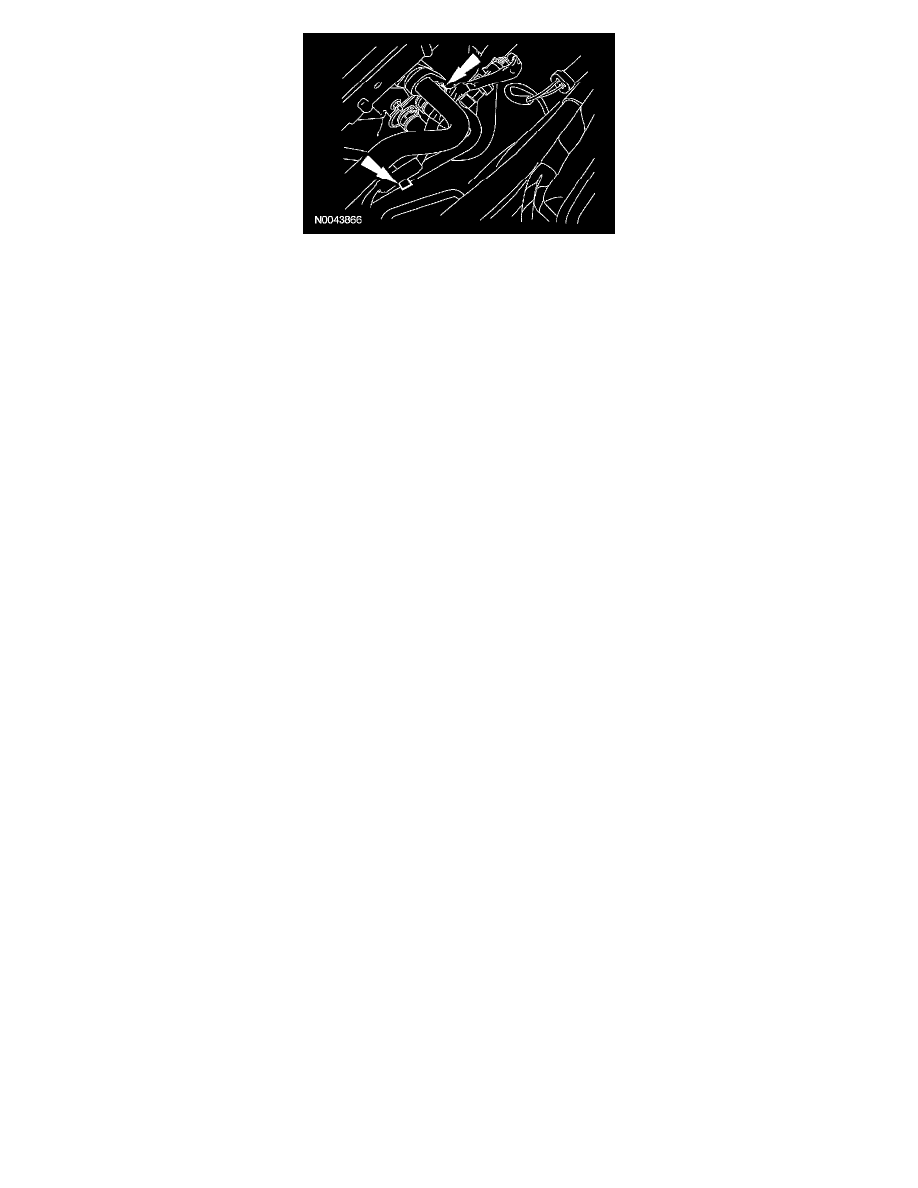

3. Drain the engine coolant.
4. Remove the instrument panel.
